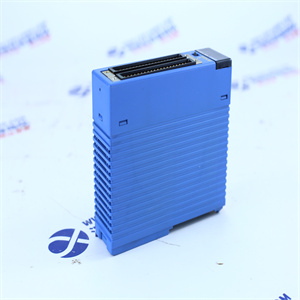

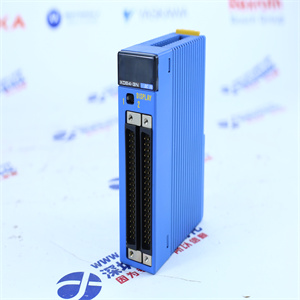

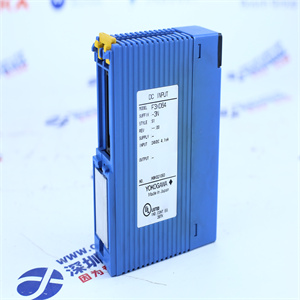

YOKOGAWA F3XD64-3N

YOKOGAWA F3XD64-3N

The F3XD64-3N is a digital input/output module manufactured by Yokogawa, a leading provider of industrial automation and control solutions. This module is designed to be used with the Yokogawa CENTUM VP distributed control system (DCS) and is part of the DCS’s modular I/O system.

The F3XD64-3N module is a high-density digital input/output module that provides 64 digital input/output channels. It is designed to be used in applications where a large number of digital signals need to be monitored or controlled. The module has 32 input channels and 32 output channels, which can be configured as either discrete or pulse signals.

The F3XD64-3N module is designed to operate in harsh industrial environments and is built to withstand extreme temperatures, humidity, and vibration. It has a compact design, which makes it easy to install and maintain. The module is also hot-swappable, which means it can be replaced without shutting down the entire system.

The F3XD64-3N module is equipped with a variety of diagnostic features that help to ensure reliable operation. It has built-in self-diagnostic functions that monitor the module’s internal circuits and report any faults or errors. The module also has a watchdog timer that monitors the communication between the module and the DCS and initiates a system reset if communication is lost.

Advantech Monitor Part#PCC-120T+T/S Used Powers

BOSCH ASM 25-T SERVO DRIVE

Kennametal Rubicron Bore Part#KR80SVU92152M Surplus

Keyence Camera Model#CV-020 W/CV-L16 Lens NIB

Siemens Sinumerik Rack Cat#6FC3761-2FA-Z Used

Allen Bradley Control Logix 1756-L55/A With M22/A Used

Reliance AC Servo Drive Vectrive VCIB-06 Used

Square D PowerLink AS Control Module AS42CM-T NIB

The YOKOGAWA F3XD64-3N is a digital input/output module designed for use with YOKOGAWA’s CENTUM VP and CENTUM CS 3000 distributed control systems.

Some of the key features and parameters of the F3XD64-3N module include:

• 32 digital input channels and 32 digital output channels
• Input voltage range: 0 to 24V DC
• Output voltage range: 0 to 24V DC
• Maximum output current: 0.5A per channel
• Isolation: 500V DC between input and output, and between input/output and ground
• Operating temperature range: -20 to 70°C
• Dimensions: 25mm (W) x 300mm (H) x 120mm (D)
• Weight: 1.2kg

The F3XD64-3N module is designed to provide reliable and accurate digital input/output capabilities for a variety of industrial applications. It is compatible with a range of communication protocols, including Modbus, FOUNDATION Fieldbus, and PROFIBUS, and can be easily integrated into existing control systems.
