Product Parameters:
- Model: ASI133-H0Q
- Brand: Yokogawa
- Type: Analog Input Module
- Input Channels: 8 isolated channels
- Input Signal: 4 to 20 mA
- Withstanding Voltage: 1500 V AC
- Input Resistance: Power ON (20 mA) 400 Ω to 750 Ω, Power OFF 1 MΩ or larger
- Accuracy: ±16 µA
- Step Response Time: 100 ms
- Data Update Period: 10 ms
- Transmitter Power Supply: 16 V DC or higher (output current limit: 20 mA)
- Drift due to Ambient Temperature Change: ±16 µA/10 °C
- Maximum Current Consumption: 150 mA (5 V DC), 450 mA (24 V DC)
- Weight: Approx. 0.30 kg
Product Specifications:

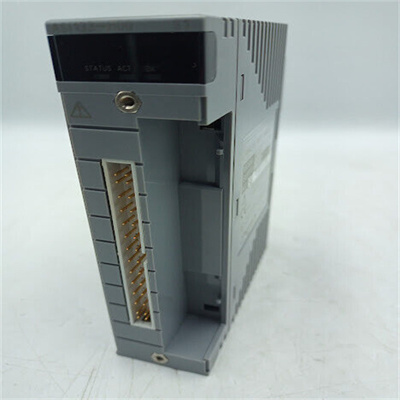

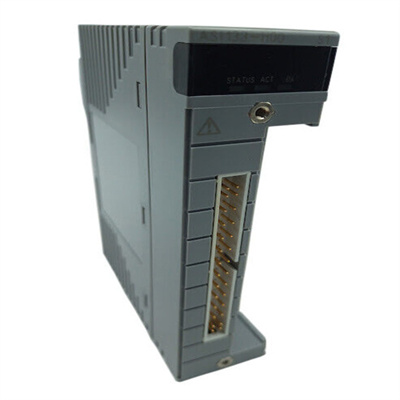

- The Yokogawa ASI133-H0Q is an analog input module designed for use in Yokogawa’s CENTUM VP or other compatible control systems.
- It features 8 isolated input channels for 4 to 20 mA signals.
- The module is designed to be mounted in a control柜 or on a DIN rail, depending on the system configuration.
Series:
- This module is part of Yokogawa’s FIO series of field I/O modules.
Features:
- Isolated channels for safety and reduced noise.
- Supports HART communication for digital control and configuration.
- Designed for use in a wide range of industrial control applications.
Application Fields:
- Industrial Automation: For controlling machinery, production lines, and processes.
- Process Control: Chemical, oil and gas, pharmaceuticals, food and beverage, and other process industries.
- Power Generation: Monitoring and control of power generation equipment.
- Building Automation: Integrating with bui
