VMIVME-7807 GE Single Board Computer

Product Description

VMIVME-7807 GE Single Board Computer

Product Name:

VMIVME-7807 GE Single Board Computer

Series:

GE VMIVME-7807 series

Function:

As a core component of industrial control systems or embedded systems,execute control programs or application programs

Usage:

Industrial automation control system

Medical equipment

Communication system

Transportation

Military

Features:

1.1GHz,1.4GHz,or 1.8GHz Pentium M processors

Up to 2 MB L2 cache

DDR synchronous SDRAM

Maximize.1.5GB memory

Dual Gigabit Ethernet

Up to 2GB bootable CompactFlash

Product Description:

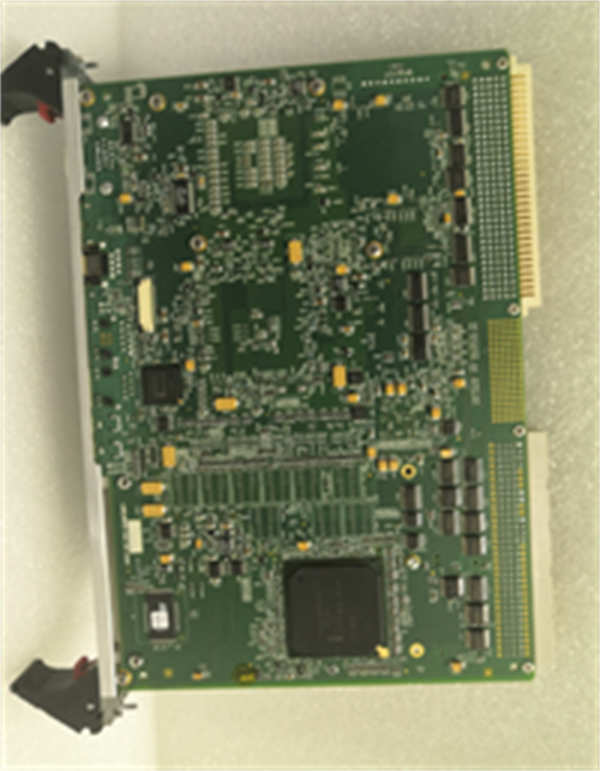

The VMIC VME-7807 series single board computers are equipped with 1.1,1.4,or 1.8GHz Pentium M processors at the factory,with up to 2 MB of secondary cache.VME-7807RC SBC provides DDR synchronous DRAM(SDRAM)as onboard system memory.These SBCs can accept a 200 pin DDR SDRAM SODIMM and optional soldered 512MB onboard memory,with a maximum capacity of 1.5GB.These SBCs also have dual gigabit Ethernet and up to 2GB bootable CompactFlash.

The VMIVME-7807 GE single board computer adopts a modular design,which is easy to install.It has the following structure:

CPU module:includes processor,memory,and cache

I/O module:includes various I/O interfaces

Product parameters:

Processor:Intel®Pentium®M processor

Main frequency:1.8 GHz

Memory:Up to 1.5 GB DDR SDRAM

Storage:Up to 2 GB CompactFlash

I/O interfaces:including 2 GbE interfaces,2 USB 2.0 interfaces,and 1 RS-232 interface

Product specifications:

Dimensions:233mm x 102mm x 41mm

Weight:1.2kg

Application field:

VMIVME-7807 GE single board computers can be widely used in industrial automation control systems,medical equipment,communication systems,transportation,military and other fields.

Here are some specific application examples:

In industrial automation control systems,used to control production lines,robots,and other equipment

In medical equipment,used to control medical instruments and equipment

In communication systems,used to control communication equipment and networks

In the field of transportation,used to control traffic signals and monitoring systems

In the military field,used to control weapon systems and radar
