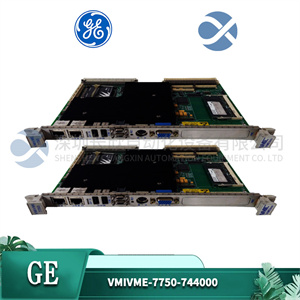

VME single board computer with VMIVME-7750 GE III processor

Product Description

The high-performance embedded computing solution for VME single board computers with VMIVME-7750 GE III processors can be used to handle complex computing tasks.

feature

Up to 1.26 GHz Pentium®;III processor with 512 Kbyte advanced transfer cache

Up to 512 MB of PC133 SDRAM using a single SODIMM

Internal AGP SVGA controller with 4 megabyte display cache

●Through Intel®133 MHz System Bus for 815E Chipset

●Dual Ethernet controller supporting 10BaseT and 100BaseTX

●Interface

●Remote Ethernet startup

●PMC expansion site

●The operating system supports Windows XP,Windows 200o,vxWorks,SolarisTM,QNX,LynxOS,and Linux

VMIVME-7750 introduces the Intel Pentium III processor into VME,providing processor speeds up to 1.26 GHz.The Pentium III processor has 32-bit addressing and 64 bit data bus.Its superscalar architecture allows for the execution of three instructions per clock cycle.Dynamic branch prediction unit,independent instruction and data caching,and MMX™The technology has also improved the performance of the processor.The Pentium III processor also provides 256 KB(512 KB at 1.26 GHz)of advanced transfer cache(full speed on chip level 2 cache),using a dual independent bus architecture for high bandwidth and performance.The L2 cache runs at the same clock frequency as the processor,thereby improving performance.DRAM memory:VMIVME-7750 accepts a 144 pin SDRAMSODIMM with a maximum memory capacity of 512 megabytes.DRAM is a dual port to VME.BIOS:the system and video BIOS are provided in programmable flash memory.Super VGA controller:VMIVME-7750 built-in 815E chipset AGP graphics adapter,supporting high-resolution graphics and multimedia quality video.This adapter is implemented by a 4 megabyte external synchronous DRAM cache with a high bandwidth 64 bit data interface.The graphics adapter supports a screen resolution of up to 1600 x 1200 x 256 colors(single view mode).

The VMIVME-7750 of VMIC is a fully functional Pentium III compatible computer that features a single slot,passive cooling,Eurocard form factor,advanced technology from the Intel 815E chipset,and runs at a front-end bus speed of 133 MHz.VMIVME-7750 complies with VME specification Rev.C1 and has a transparent PCI to VME bridge,allowing the board to act as a system controller or peripheral CPU in multi CPU systems.

application area

The VME single board computer with VMIVME-7750 GE III processor is widely used in various real-time applications,such as data acquisition,image processing,machine vision,communication and control systems.
