TRICONEX AI3351 is an analog input module widely used in industrial automation and safety control systems.The following is a detailed introduction to the module:
1.Product Overview
TRICONEX AI3351 module is a high-performance analog input module produced by Triconex(now a brand of Invensys).It is designed to receive and process analog signals from sensors,such as temperature,pressure,flow,etc.,and convert these signals into digital signals for processing and decision-making by the control system.
2.Main specifications and parameters
Input signal:
Rated input current:4~20mA.
Input bandwidth(3dB):16Hz.
Pulse input module(AI3351 type)Number of input signals:8,non-shared.
Input frequency range:20Hz~20000Hz(can operate at frequencies below 20Hz or above 20000Hz,but the accuracy and sensitivity need to consult Triconex field service engineers).
Accuracy:±0.01%at 1000~20000Hz,±0.1%at 100~999Hz,±1.0%at 20~99Hz.
Electrical parameters:
Working current range:2~22mA DC.
Power supply voltage:Usually 220V or 280V(determined according to the product specification).
Source impedance:unknown(but other relevant electrical parameters are provided).
Physical parameters:
Weight:1.5 kg(product itself),3 kg(including transport packaging).
Status indicator:1 for each point,module status includes PASS,FAULT,ACTIVE.

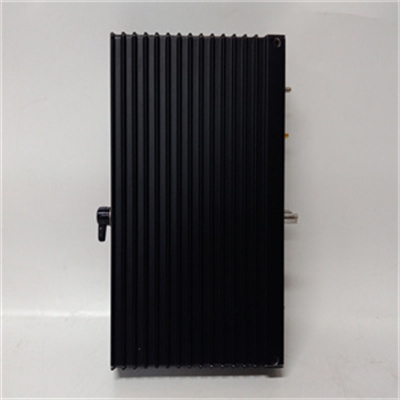

TRICONEX AI3351
III.System features and functions
High fault tolerance:
Provides a three-module redundant structure(TMR)with three identical sub-circuits,each of which performs a certain degree of independent control and can withstand harsh industrial environments.
Field installable:
Field installable,the module level can be installed and repaired online on site without affecting the field wiring.
Module Expandability:
Supports up to 118 I/O modules(analog and digital)and optional communication modules.
Remote Communication Capability:
Communication modules can connect to Modbus masters and slaves,or to Foxboro and Honeywell distributed control systems(DCS),other Tricons in peer-to-peer networks,and external hosts in TCP/IP networks.
Remote I/O Support:
Remote I/O modules can be supported up to 12 kilometers from the host.
Windows NT-based Programming:
Develop and debug control programs using Windows NT-based programming software.
Intelligent Functions:
Intelligent functions in input and output modules reduce the workload of the main processor.Each input/output module has three microprocessors.
Comprehensive Online Diagnostics:
Routine maintenance can be performed while the Tricon is operating normally without interrupting the control process.
Hot Standby Support:
“Hot Standby”support is provided for I/O modules for emergency situations where service cannot be provided in a timely manner.
IV.Application Scope
TRICONEX AI3351 module is widely used in CNC machinery,metallurgy,coal mines,food factories,oil and gas,petrochemicals,chemicals,paper printing,textile printing and dyeing,machinery,electronic manufacturing,automobile manufacturing,tobacco,plastic machinery,electricity,water conservancy,water treatment,environmental protection,municipal engineering,boiler heating,energy,power transmission and distribution and other fields.
TRICONEX AI3351
