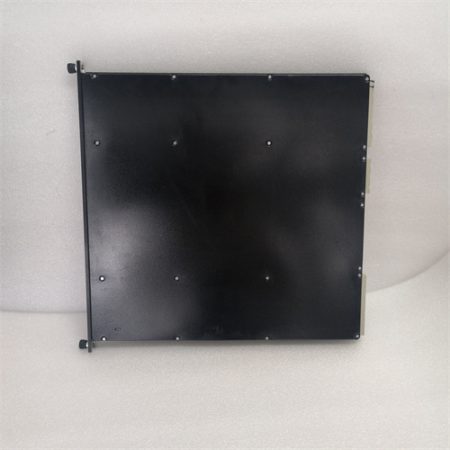

TRICONEX 3806E

TRICONEX 3806E is a safety instrument system(SIS)controller launched by Triconex.The following is a detailed introduction to it:

1.Product Overview

TRICONEX 3806E belongs to the Trident safety system in the Triconex series.It has a triple redundant design and SIL 3 certification to ensure the safe and reliable operation of the system.It is usually used to connect field devices and provide high reliability and high performance control functions.

TRICONEX 3806E

2.Main Features

Triple redundant design:The triple redundant architecture is adopted to improve the reliability and safety of the system.

SIL 3 certification:It meets the standards of Safety Integrity Level 3(SIL 3)to ensure the safe operation of the system under various conditions.

High-performance processor:Equipped with a dual-core PowerPC 604e processor,it can respond quickly to safety events.

Multiple communication interfaces:Supports multiple communication interfaces such as Ethernet,RS-232,RS-485,etc.,which is convenient for connection and data exchange with other devices.

High protection level:The protection level reaches IP65,which is suitable for various harsh industrial environments.

Easy to use and maintain:Simple operation,convenient maintenance,and reduced use costs.

3.Technical parameters

Model:3806E

Series:Trident

Processor:Dual-core PowerPC 604e

Memory:256 MB RAM,1 GB storage space

Communication interface:Ethernet,RS-232,RS-485

Protection level:IP65

Input voltage range:12-48VDC

Output voltage range:5VDC

Output current:Maximum 10A

Efficiency:Greater than 90%

Dimensions:170mm x 105mm x 32mm

Weight:About 120g

TRICONEX 3806E

4.Functions and applications

TRICONEX 3806E module is mainly used to receive and process analog input signals,such as the measurement of process variables such as temperature,pressure,flow,etc.,and can output analog signals to various actuators or control devices in the safety loop for controlling safety valves and starting emergency shutdown systems.In addition,it also has digital output functions,which are suitable for controlling valves,motors,pumps,alarms and other equipment.

This module is widely used in many industries such as oil and gas,chemical industry,electric power,metallurgy,etc.,including refineries,oil and gas pipelines,offshore platforms,chemical plants,pharmaceutical plants,power plants,substations,steel mills,aluminum plants,nuclear power plants,shipbuilding and mines,etc.In these fields,as the core component of the control system,it undertakes the important responsibilities of ensuring production safety and improving production efficiency.
