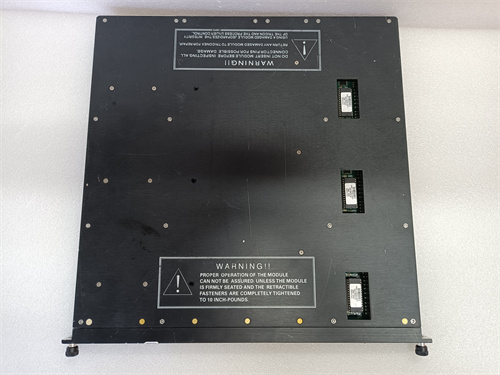

TRICONEX 3805E

TRICONEX 3805E is a high-performance industrial control module.The following is a detailed introduction to it:

1.Product Overview

TRICONEX 3805E belongs to the Triconex series,which includes various safety redundant controllers,I/O modules,network devices and software for building safety-critical control systems.TRICONEX 3805E modules are widely used in industries such as oil and gas extraction,oil refining,chemical production,power generation,nuclear power,metallurgy,pharmaceuticals,food processing,pulp and paper,and water treatment.In these fields,they are mainly used for process control and safety interlock systems to ensure the safety and stability of industrial processes.

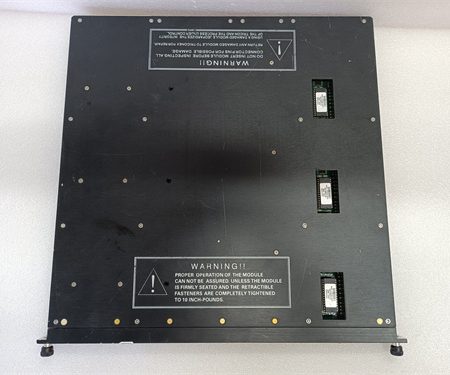

TRICONEX 3805E

2.Technical Features

High reliability:

TRICONEX 3805E adopts triple redundancy(TMR)design to ensure high reliability and availability of the system.

It meets the requirements of SIL 3 safety integrity level and is suitable for harsh industrial environments.

High precision:

It provides high-precision analog output to meet strict control requirements.

The output accuracy reaches±0.1%and the response time is≤2ms.

Flexible configuration:

It can be flexibly configured according to different application requirements.

Supports multiple communication interfaces,such as Ethernet/IP,Modbus,TCP/IP,RS-232,RS-485,etc.,which is convenient for integration with other systems.

Easy maintenance:

Provides rich diagnostic functions for easy maintenance.

The design has high anti-interference ability and is suitable for industrial environments.

III.Product parameters

Model:TRICONEX 3805E

Input voltage:24V DC

Output voltage:5V DC

Operating temperature:-40℃~85℃

Number of channels:The number of analog output channels is 4

Output type:Supports two analog output types of current(4-20mA)and voltage(-10V to+10V)

Power consumption:≤5W

Dimensions:120mm x 80mm x 50mm

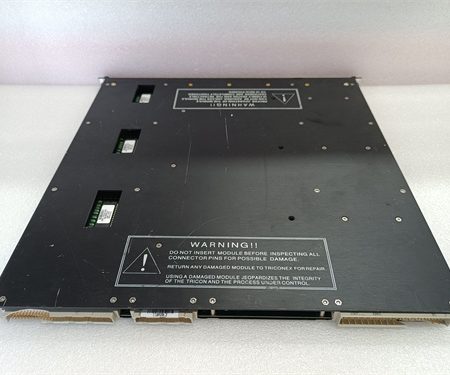

TRICONEX 3805E

IV.Application field

Industrial process control:

TRICONEX 3805E can be used in industrial process control systems such as chemical plants,oil and gas industries,power generation plants,etc.

It can receive and process sensor signals,monitor and control parameters such as temperature,pressure,flow,etc.in the production process in real time.

Automated production line:

This module can be applied to the control system of automated production lines and mechanical equipment.

It can receive signals from various sensors to monitor and control equipment on the production line.

Energy management system:

TRICONEX 3805E is often used in energy management systems to monitor and control power systems,power grids,energy generation devices,etc.

It can receive power parameters and energy data,monitor energy consumption and power grid load in real time,and implement energy regulation control strategies.

Environmental monitoring and control:

This module can be applied to environmental monitoring and control systems,such as air conditioning control,temperature and humidity monitoring,sewage treatment,etc.

It can receive sensor signals of environmental parameters to monitor and adjust environmental conditions.
