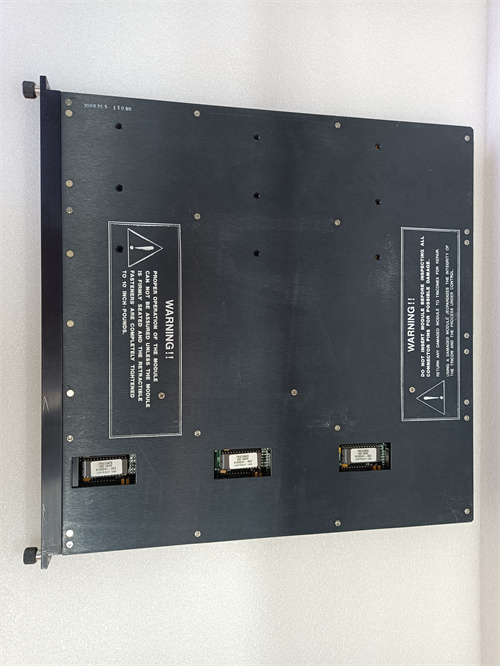

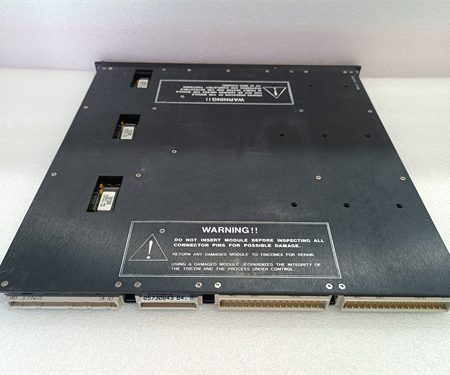

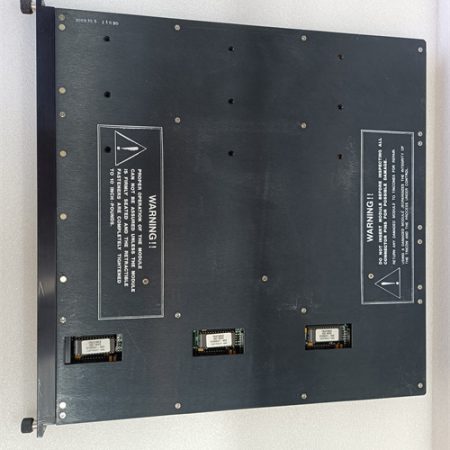

TRICONEX 3704E

TRICONEX 3704E is a high-reliability digital input module.The following is a detailed introduction to the product:

1.Product Overview

TRICONEX 3704E belongs to the Tricon series of safety control system modules,produced by Honeywell(now a brand of Schneider Electric).It is designed for mission-critical and safety-critical industrial environments,providing high availability and triple redundant input signal processing to ensure reliable operation of the system.

TRICONEX 3704E

2.Main Features

Triple Redundancy Design:The 3704E module uses TMR(Triple Modular Redundancy)technology,with three independent processing units to collect and verify input signals,thereby improving the system’s fault tolerance and ensuring data accuracy and reliability.

High-density signal acquisition:The module supports 32 independent digital input signals,provides high-density signal acquisition capabilities,and can monitor and process inputs from multiple sensors and switches.

Hot-swap function:The 3704E supports hot-swap function,which allows modules to be replaced without shutting down the system,reducing downtime and improving maintenance efficiency.

Built-in self-check function:The module has a built-in self-check function that can continuously monitor the health of the system,detect and report faults in a timely manner,and help prevent problems in advance.

High compatibility:The module is fully compatible with other modules and controllers of the Triconex system and can be easily integrated into existing control systems.

TRICONEX 3704E

3.Technical Specifications

Here are some of the main technical specifications of TRICONEX 3704E:

Input voltage:24V DC

Output voltage:24V DC

Operating temperature range:-40°C to 70°C

Number of channels:32 digital input channels

Resolution:12 bits(depending on module configuration)

Accuracy:±0.1%(depending on module type and operating environment)

Response time:<500μs

Dimensions:Depending on the specific model,the dimensions may vary(for example,the dimensions of some digital input modules are 150mm x 100mm x 50mm)

Weight:Approximately 0.9kg to 500g(depending on module type and configuration)

Protection level:such as IP67(to ensure reliable operation in harsh environments)

4.Application areas

TRICONEX 3704E is widely used in various industrial fields that require high reliability and safety,including but not limited to:

Oil and gas industry:used to monitor pipeline pressure,temperature and other parameters.

Power industry:used for safety protection of substations and power plants.

Chemical industry:used to monitor parameters such as reactor temperature and pressure.

Pharmaceutical industry:used to collect status signals of production equipment to ensure the safety of the production process.

Other occasions that require high safety:such as nuclear industry,metallurgical industry,etc.
