TRICONEX 3503E is a high-performance,high-reliability module widely used in industrial automation and process control.The following is a detailed introduction to TRICONEX 3503E:
1.Product Overview
The TRICONEX 3503E module is designed for industrial automation and control applications,with high reliability and availability,and can meet strict safety requirements.It uses triple modular redundancy(TMR)technology to ensure the stable operation of the system and is suitable for various harsh industrial environments.

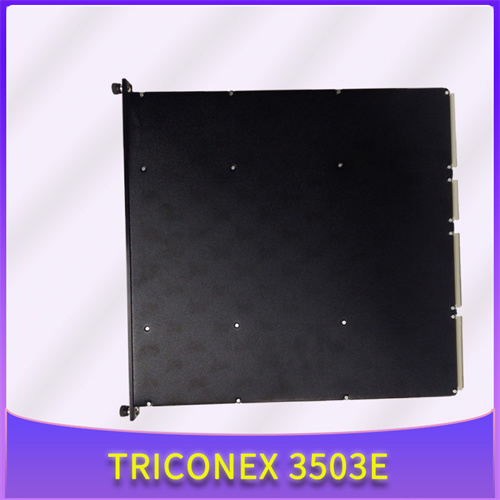

TRICONEX 3503E
2.Technical Features
Triple Modular Redundancy(TMR):
TRICONEX 3503E adopts triple modular redundant design to improve the reliability and safety of the system through three identical subsystems.Even if one or two of the subsystems fail,the entire system can continue to operate,ensuring the continuity and safety of the industrial process.
Multi-channel input:
The module provides multiple digital input channels(such as 32)and can receive and process multiple digital signals simultaneously.This meets the monitoring needs of multiple devices or sensors and improves the flexibility and scalability of the system.
High resolution and programmability:
TRICONEX 3503E has high resolution and can accurately measure the changes of analog input signals.At the same time,it has certain programmability,and can realize various control logics and functions through programming and configuration to adapt to different application scenarios.
Fast response and high-speed data processing:
The module has fast response time and high-speed data processing capabilities,and can monitor and control industrial processes in real time.In the event of abnormal conditions,it can quickly take corresponding measures to ensure the safety and stability of the system.
Multiple communication interfaces:
TRICONEX 3503E supports a variety of communication protocols and interface standards,such as Ethernet,RS-232,RS-485,etc.This facilitates communication and integration with other devices and systems,and improves the interoperability and flexibility of the system.
Redundant design and fault tolerance:
In addition to TMR technology,TRICONEX 3503E also has redundant design and fault tolerance.It is equipped with dual processors and dual power inputs to provide system-level redundancy and fault tolerance.This design minimizes the impact of system failures on operations and improves system reliability and availability.

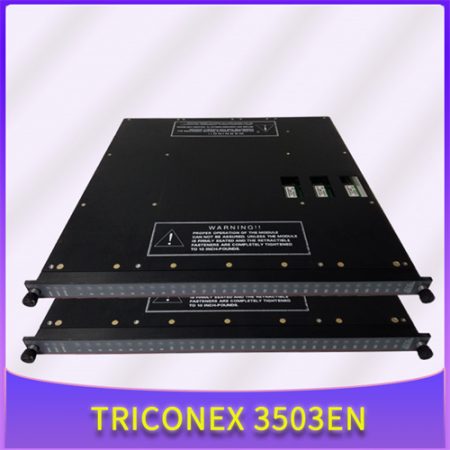

TRICONEX 3503E
3.Application fields
TRICONEX 3503E modules are widely used in the following fields:
Oil and gas industry:
In the process of oil refining and oil extraction,emergency shutdown system(ESD)is essential to prevent accidents and protect employee safety.TRICONEX 3503E can be used to monitor and control safety-critical units in these processes.
Chemical industry:
Reactors and high-voltage equipment involved in chemical manufacturing processes require precise control and protection measures.TRICONEX 3503E can help implement these safety functions to prevent dangerous events such as leakage and explosion.
Power industry:
In thermal power plants,monitoring and protection of boilers and turbine compressors are essential to maintain the stable operation of power plants.TRICONEX 3503E can be used in these applications to provide the necessary safety layer.
Manufacturing industry:
In highly automated production lines,TRICONEX 3503E can be used to monitor machine status and process parameters to ensure production safety and efficiency.
4.Technical specifications(partial)
Input voltage:usually 24VDC(there are other statements,such as supporting a specific input voltage range).
Output voltage:24VDC(specific output voltage may vary depending on the application).
Input current and output current:Depends on the specific model and application requirements.
Operating temperature range:-40℃70℃(there are also claims that its operating temperature range can reach-1070℃).
Storage temperature range:-40℃~85℃.
Communication interface:Supports multiple communication protocols and interface standards such as Ethernet,RS-232,RS-485,etc.
Memory capacity:Usually 32MB(specific memory capacity may vary depending on the model).
Size and weight:Depending on the specific version and configuration,there may be multiple size and weight specifications.
V.Summary
The TRICONEX 3503E module has been widely used in industrial automation and process control due to its high performance,high reliability and flexible programmability.It can meet the needs of various complex industrial processes and provide strong support for the development of industrial automation.Whether in the fields of petroleum,chemical,power or manufacturing,TRICONEX 3503E has demonstrated excellent performance and reliability.
