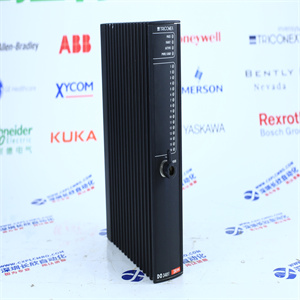

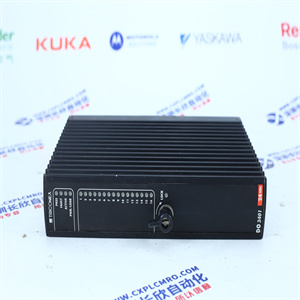

TRICONEX 3401

TRICONEX 3401

The TRICONEX 3401 is a safety controller system designed by Schneider Electric. It is part of the TRICONEX family of programmable logic controllers (PLCs) and is specifically used for safety-critical applications in industries such as oil and gas, power generation, and process automation.

The TRICONEX 3401 provides a high level of reliability and redundancy to ensure the safe operation of industrial processes. It has a modular design, allowing for flexible configuration and expansion to meet specific application requirements. The system is built to withstand harsh environmental conditions and is capable of operating in temperatures ranging from -40°C to 70°C.

Key features of the TRICONEX 3401 include:

1. Triple Modular Redundancy (TMR): It employs a TMR architecture to provide high availability and fault tolerance. This means that there are three identical processors running simultaneously, and any deviations or failures are detected and corrected in real-time.
2. Diagnostics and Self-Test: The controller continuously monitors its internal components and external devices for faults. It performs self-tests to verify the integrity of its hardware and software, ensuring that any potential failures are detected before they can cause harm.
3. Extensive I/O Options: The TRICONEX 3401 supports a wide range of digital, analog, and specialty I/O modules, allowing for seamless integration with various sensors, actuators, and equipment. This flexibility enables the monitoring and control of diverse processes and equipment.
4. Communication Capabilities: The system is equipped with multiple communication interfaces, such as Ethernet, serial ports, and Modbus, which enable seamless integration with other systems and devices. It supports various industry-standard protocols for both local and remote communication.
5. Comprehensive Safety Functions: The TRICONEX 3401 provides a wide array of safety functions, including emergency shutdown, logic solvers, fire and gas detection, and turbine control. These functions can be programmed and customized based on specific application requirements, ensuring the safe and reliable operation of critical processes.

Some of the key features of the Triconex 3401 include:

• Triple modular redundancy (TMR) architecture for high availability and fault tolerance
• Support for up to 2048 I/O points
• Support for multiple communication protocols, including Modbus, OPC, and Ethernet/IP
• Built-in diagnostics and fault detection capabilities
• Support for hot-swappable modules for easy maintenance and upgrades

The Triconex 3401 also meets a number of industry standards for safety and reliability, including IEC 61508, SIL 3, and ISA S84.01.

Xycom XVME 402 XVME402 VME Board

Xycom VMEbus Board DOUT XVME-260 32pt Relay Out NEW

XYCOM XVME-979/4 USPP XVME9794

XYCOM XVME-560 XVME560 VMEbus Analog Input Board VME

XYCOM XVME-203 COUNTER I/O MODULE NEW IN A BOX

Xycom XVME 085 VME Bus Board

Xycom AOUT XVME-530 70530-001

Xycom DIO XVME-240 70240-001

Xycom AIN XVME-560 70560-001

Some of the key parameters of the Triconex 3401 include:

• Processor speed: 66 MHz
• Memory: 16 MB RAM, 32 MB flash
• Operating temperature range: -40°C to 70°C
• Power supply: 24 VDC
• Dimensions: 13.5 x 8.5 x 5.5 inches
• Weight: 8.5 pounds

Overall, the Triconex 3401 is a highly reliable and robust safety PLC designed for use in critical control applications where safety and reliability are paramount.
