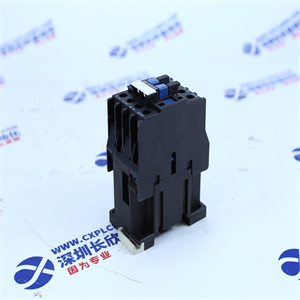

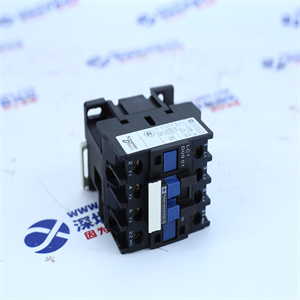

Schneider LC1-D0901

Schneider LC1-D0901

• Manufacturer: Schneider Electric
• Model: LC1-D0901
• Series: TeSys D
• Type: Contactor
• Rated Current: 9 amps
• Rated Voltage: 690V AC
• Number of Poles: 3
• Coil Voltage: 24V AC
• Mounting: DIN rail
• Dimensions: 45mm x 75mm x 82mm
• Weight: 0.2 kg

The Schneider LC1-D0901 is a contactor, which is an electrical switch used for switching an electrical circuit on or off. It is designed for use in low-voltage applications and has a rated operational current of 9 amps. The LC1-D0901 is part of the TeSys D range of contactors from Schneider Electric, which are known for their reliability and durability. It features a compact design, making it easy to install in tight spaces, and has a wide range of accessories available to customize its functionality. The LC1-D0901 is commonly used in industrial and commercial applications, such as motor control, lighting control, and HVAC systems.

PHOENIX CONTACT IB-IL-24/230-DO​R4/W-PC USPP IBIL24230DO

PHOENIX CONTACT IB-IL-24/230-DO​R4/W USPP IBIL24230DOR4W

PHOENIX CONTACT IB-IL-24-DO-8 USPP IBIL24DO8

PHOENIX CONTACT IB ST 24 AO

PHOENIX CONTACT IB-IL-24-DI-8-2​MBD NSFP IBIL24DI82MBD

Phoenix Contact 2726227 IB IL 24 DI8 MUX Modules

Phoenix Contact 2726269 IB IL DO 8 Comm.Interface

PHOENIX CONTACT IB-IL-24-DI-8-P​AC NSFP IBIL24DI8PAC

Parameters:

• Rated Operational Voltage (Ue): 690V AC
• Rated Insulation Voltage (Ui): 690V AC
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Rated Frequency (f): 50/60 Hz
• Rated Operational Current (Ie): 9 A
• AC-3 Rated Operational Power (Pe): 2.2 kW at 400V AC
• AC-1 Rated Operational Power (P): 4 kW at 400V AC
• Mechanical Durability: 10 million cycles
• Electrical Durability: 1 million cycles
• Ambient Temperature Range: -5°C to +60°C
• Storage Temperature Range: -40°C to +80°C
• Protection Degree: IP20 (finger-safe terminals)
