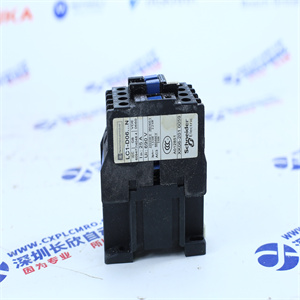

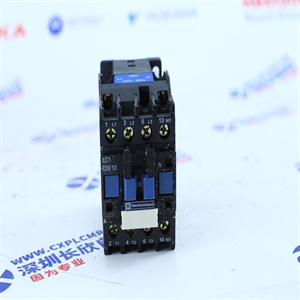

SCHNEIDER LC1-D0610

SCHNEIDER LC1-D0610

The Schneider LC1-D0610 is a 3-pole contactor designed for controlling and switching electrical circuits up to 6A. It is part of the TeSys D range of contactors and is suitable for use in a variety of applications, including motor control, heating and lighting.

Product Information:

• Brand: Schneider Electric
• Model: LC1-D0610
• Type: TeSys D Contactor
• Number of Poles: 3
• Rated Current: 6A
• Rated Voltage: 690V AC
• Control Voltage: 24V AC/DC
• Frequency: 50/60Hz
• Mounting: DIN Rail
• Standards: IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14

The Schneider LC1-D0610 is a 3-pole contactor designed for controlling electric motors and other electrical loads. It has a rated operational current of 6 amps and a rated operational voltage of 690 volts AC. The LC1-D0610 contactor is part of the TeSys D range and is designed for use in industrial and commercial applications. It features a compact design, easy installation, and reliable performance. The LC1-D0610 contactor is also equipped with an auxiliary contact block for monitoring the status of the contactor and can be used with a wide range of accessories for added functionality.

Hard Drive SCSI Quantum 270S TB25S026 04-E 655-0186-A

Hard Drive SCSI Quantum Fireball TM 3200S TM32S012 02-C

Hard Drive SCSI Quantum Maverick ProDrive 540S MV54S011

Hard Drive SCSI Quantum 540S FB50S029 r02-G 655-0272-A

Hard Drive SCSI Micropolis 4110 TR0031-01-3 136382-01-7

Hard Drive IDE Quantum 425i AT PD425A Vintage Disk

Tape Drive SCSI IBM 7208-011 Exabyte 870010-200 HH CTS

Motherboard Socket7 Gigabyte GA586VX Rev3.36 430VX 3ISA

Atalla Terminal 106317 Network Security SignMaster

Parameters:

• Rated Operational Voltage (Ue): 690V AC
• Rated Insulation Voltage (Ui): 1000V AC
• Rated Impulse Withstand Voltage (Uimp): 6kV
• Rated Frequency (f): 50/60Hz
• Rated Operational Power (P): 2.2kW at 400V AC-3
• Rated Control Circuit Voltage (Us): 24V AC/DC
• Control Circuit Power Consumption (In): 3VA at 50Hz, 3.5VA at 60Hz
• Mechanical Endurance: 10 million cycles
• Electrical Endurance: 2 million cycles at AC-3, 100,000 cycles at AC-4
• Ambient Temperature Range: -5°C to +60°C
• Storage Temperature Range: -40°C to +80°C
• Protection Degree: IP20 (finger-safe terminals)
• Dimensions (W x H x D): 45mm x 78mm x 58mm
• Weight: 0.2kg
