SCHNEIDER GV7-RS150

SCHNEIDER GV7-RS150

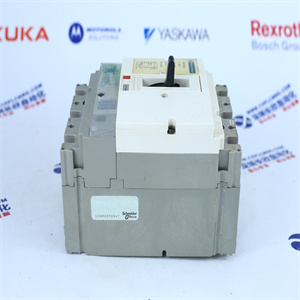

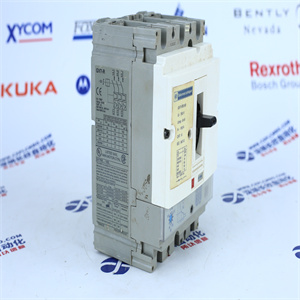

The Schneider GV7-RS150 is a motor protection circuit breaker designed to protect motors from overloads, short circuits, and phase failures. It has a rated current of 150A and can be used with motors up to 75kW at 400V.

The GV7-RS150 has a thermal magnetic trip unit that provides accurate and reliable protection against overloads and short circuits. It also has a phase failure protection feature that detects and protects against phase failures.

The circuit breaker has a compact design and is easy to install. It has a DIN rail mounting system and can be easily integrated into existing electrical systems. The GV7-RS150 also has a wide range of accessories available, including auxiliary contacts, shunt trips, and undervoltage releases.

Other key features of the Schneider GV7-RS150 include:

• Adjustable thermal overload protection
• Trip-free mechanism
• Positive contact indication
• IP20 protection rating
• Operating temperature range of -25°C to +70°C

ITERMEC 1545 BARECODE SCANNER W PLUG

Lazer-link BARECODE SCANNER W PLUG

Alpha tft 250 24 Teflon Tubing Natural Reel 1000ft

DiCom PA-8-62-SC Variable attenutor Plugin for GP700m

Agilent 8594E Spectrum Analyzer W Options 021,101,105

HP E5970A Optical Power Meter

Spirent SX-7410B Communication Analyzer Module

LUCENT SMF-28 SPECIAL BARE SINGLE MODE FIBER 25Km

Key Features:

1. Compact Design: The GV7-RS150 has a compact and modular design, making it easy to install and fit into confined spaces.
2. Adjustable Thermal and Magnetic Trip Units: The motor circuit breaker is equipped with adjustable thermal and magnetic trip units, allowing for precise and customizable tripping settings.
3. High Breaking Capacity: With a breaking capacity of 150A, the GV7-RS150 can handle high fault currents and ensure the safety of the motor and connected equipment.
4. Trip Class 10: The motor circuit breaker is designed with a trip class 10, providing fast and reliable response to overload conditions.
5. Phase Failure Protection: The GV7-RS150 offers built-in protection against phase failures, ensuring that the motor is shut down in case of an imbalance in the power supply.

Parameters:

• Rated Current: 150A
• Rated Operational Voltage: Up to 690V AC
• Rated Frequency: 50/60Hz
• Breaking Capacity: 150A
• Trip Class: 10
• Number of Poles: 3
• Short Circuit Protection: Thermal-magnetic trip unit
• Mounting: DIN rail or panel mountable
• Ambient Temperature: -25°C to +70°C
• IP Rating: IP20 (protection against solid objects)
