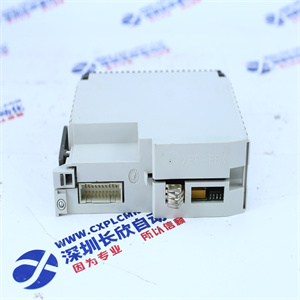

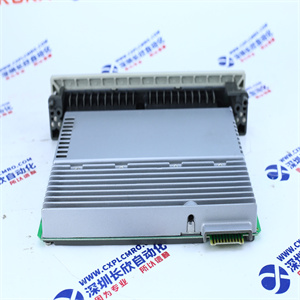

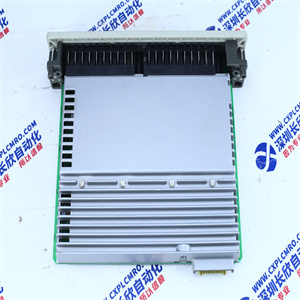

SCHNEIDER AS-B809-016

SCHNEIDER AS-B809-016

The Schneider AS-B809-016 is a digital input/output module designed for use with Modicon Quantum programmable logic controllers (PLCs). It has 16 digital inputs and 16 digital outputs, with each input and output having a voltage range of 24V DC. The module is designed for use in industrial automation applications and is capable of handling a wide range of input and output signals. It is compact in size and can be easily installed in a control panel or other industrial enclosure. The module is manufactured by Schneider Electric, a leading provider of industrial automation and energy management solutions.

TOSHIBA VT130H7U4270 NSFP VT130H7U4270

TOSHIBA PROSEC EX500 CPU PLC

TOSHIBA VT130G7U4220 USPP VT130G7U4220

TOSHIBA VT130H1U-4220-B​0H USPP VT130H1U4220B0H

TOSHIBA TPU325H-S USPP TPU325HS

TOSHIBA VT130H3U4220 USPP VT130H3U4220

TOSHIBA VT130G3U4220 USPP VT130G3U4220

Toshiba Velconic RAD310-1006E DC140V RA Driver RA13M

The Schneider AS-B809-016 is a 16-channel digital input module designed for use with Modicon Quantum programmable logic controllers (PLCs). It has the following specifications:

• Input voltage range: 24V DC
• Input current: 7mA at 24V DC
• Input type: sinking or sourcing
• Input signal delay: 1ms
• Isolation: 1500V AC between input and backplane
• Operating temperature range: 0 to 60°C
• Storage temperature range: -40 to 85°C
• Dimensions: 118 x 16 x 126 mm
• Weight: 0.15 kg

The AS-B809-016 module is used to monitor the status of digital signals from sensors, switches, and other devices. It can be configured to operate in either sinking or sourcing mode, depending on the type of input signal being used. The module provides high-speed input signal processing with a 1ms delay, ensuring accurate and reliable data acquisition. It is also designed with built-in isolation to protect against electrical interference and noise.
