SCHNEIDER 140DDO35300

SCHNEIDER 140DDO35300 is a digital output module manufactured by Schneider Electric.The following is a detailed introduction to the product:

1.Basic Overview

Manufacturer:Schneider Electric

Series:Modicon 140 Series

Type:Digital Output Module(DO)

Model:140DDO35300

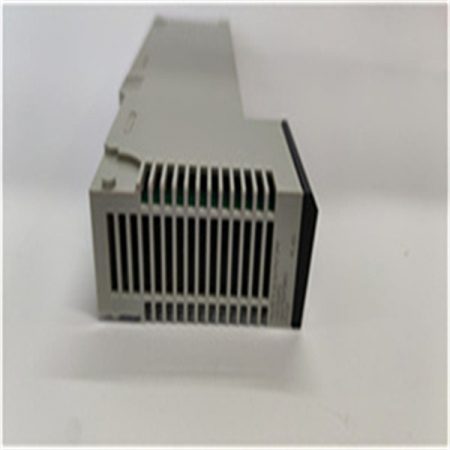

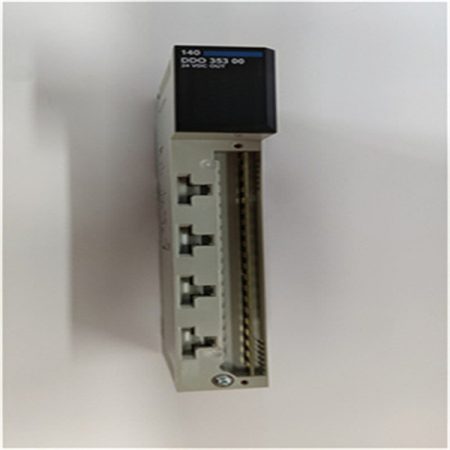

SCHNEIDER 140DDO35300

2.Main Features

Output Capacity:140DDO35300 provides 32 digital output channels,each channel is equipped with two types of contacts,normally open and normally closed,which can be flexibly used to control various external devices,such as relays,indicator lights,motors,lights,valves,etc.

High Performance:The module adopts advanced manufacturing technology and materials to ensure stable operation in various harsh industrial environments.At the same time,it has strong driving capability,and the maximum current can reach 1A(the maximum current of each output group is 4A,and the maximum current of the entire module is 16A),which can meet the control needs of a variety of equipment.

Wide operating temperature range:The operating temperature range of 140DDO35300 is between-20°C and+60°C,which can adapt to a wide range of industrial environmental temperature conditions and ensure stable operation under different working conditions.In addition,its storage temperature range is-40°C to+85°C,which can maintain the stability and reliability of the product even in the storage state when the device is not working.

Communication and integration:The module supports Modbus RTU communication protocol(it is also said that it supports the internal communication protocol of the Modicon Quantum system),which is convenient for communication and data interaction with other industrial equipment to achieve system integration and automatic control.At the same time,it is usually connected to other modules and controllers of the Modicon Quantum series through the backplane bus.

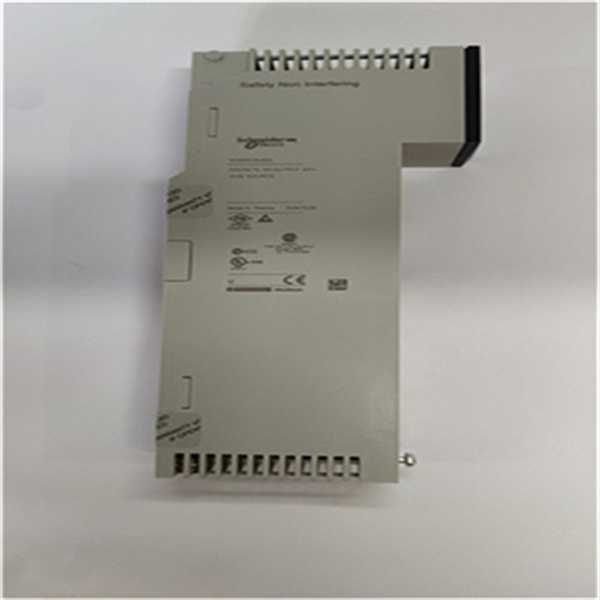

SCHNEIDER 140DDO35300

Status indication and protection:The 140DDO35300 has multiple status indicators,including 32 green LEDs for indicating input status,1 red LED for indicating external fault detection,and 1 green LED for indicating bus communication status.In addition,the internal output of the module has 5A fuse protection,and each output point also has 3A protection,which can effectively prevent overcurrent and other faults from damaging the module.

Isolation performance:The isolation voltage between the channel and the bus is 1780V RMS DC(duration 1 minute),and the isolation voltage between groups is 500V RMS DC(duration 1 minute),which ensures the independence and anti-interference ability of the signal.

3.Application field

The 140DDO35300 digital output module is widely used in the field of industrial automation to control the operation of various machines and equipment.In process control systems,the module can be used to control the switching status of equipment such as valves and pumps,thereby achieving precise control of the process flow.In addition,in the manufacturing industry,the module can be used for various control tasks on the production line,such as material handling,assembly,etc.
