SCHNEIDER 140DDM39000

SCHNEIDER 140DDM39000

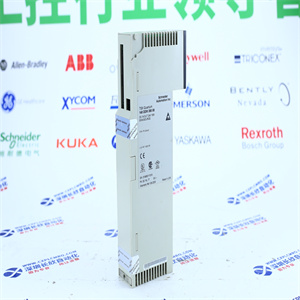

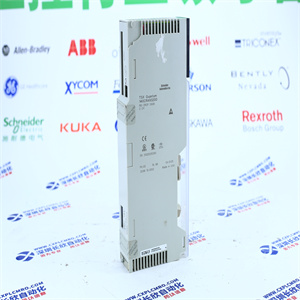

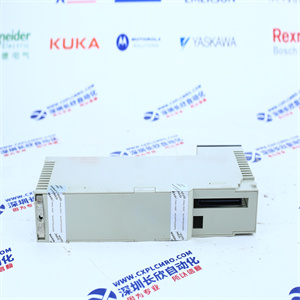

The Schneider 140DDM39000 is a Quantum discrete input/output module. It has 32 discrete inputs and 32 discrete outputs. The module operates on a 24V DC power supply and has a maximum power consumption of 5W. The input voltage range is 19.2V to 30V DC, and the output voltage range is 5V to 30V DC. The module has a response time of 1ms for inputs and 2ms for outputs. It has a maximum switching frequency of 10kHz and a maximum current rating of 2A per output. The module is designed for use in industrial automation applications and is compatible with the Quantum automation platform.

LGC WIRELESS CELLULAR MR-X-SYS-1 SYSTEM MR-X-RSM3-6-1

NOW NOWPAK DISPENSE/PUMP SYSTEM PHOTRESIST ND-LM-01

NEWPORT TILTING CAMERA MOUNT NIKON 50mm LENS MICROSCOPE

LEYBOLD INFICON QUADREX-200 SCU MASS FILTER CONTROL GAS

LFC-7300 LIQUID FLOW CONTROLLER WATER/CHEMICAL/SLURRY

MOTORIZED LINEAR MOTION GSI LASER SCANNER GALVO MOTOR

The Schneider 140DDM39000 is a digital input/output module that is part of the Modicon Quantum series. It has 32 discrete inputs and 32 discrete outputs, and supports both sinking and sourcing input/output types. The module operates on a 24V DC power supply and has a maximum power consumption of 5W.

Some key parameters of the Schneider 140DDM39000 module include:

• Input voltage range: 18-30V DC
• Input current: 5mA at 24V DC
• Input response time: 1ms
• Output voltage range: 5-30V DC
• Output current: 0.5A per channel, 8A maximum per module
• Output response time: 1ms
• Operating temperature range: -25°C to +70°C
• Storage temperature range: -40°C to +85°C
• Humidity range: 5% to 95% non-condensing
