Schneider 140CPU65150

Schneider 140CPU65150 is a high-performance processor module manufactured by Schneider Electric.The following is a detailed introduction to the product:

1.Product Overview

140CPU65150 is a member of the Quantum series of Schneider Electric Unity series processors.It combines the standard functions of PLC(Programmable Logic Controller)and the diagnostic capabilities of network servers to provide powerful computing power for industrial automation and control systems.

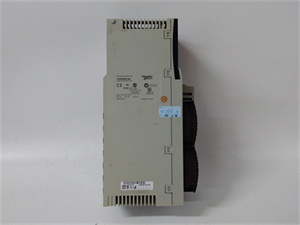

Schneider 140CPU65150

2.Technical Specifications and Features

Processor Performance:

The clock frequency is 166 Mhz.

There are 63 distributed I/O stations,1 rack and 3 distributed networks.

There are 8000 discrete inputs and discrete outputs in the distributed network and 31744 discrete inputs and outputs in the remote system.

Storage and Programming:

Expandable 8 MB file storage with PCMCIA card.

7168 kB or expandable programming space.

768 kB of memory.

Communication and Network:

Communication using RJ-45 connection.

Integrated connection types include Ethernet TCP/IP,Modbus,Modbus Plus,and USB.

The data rate is 10/100 Mbps,and shielded twisted pair should be used as the medium.

Features:

It has self-diagnostic and monitoring functions to ensure the health of the system.

It supports hot swapping,allowing online replacement of faulty modules.

I/O modules can be added or removed online without restarting the system.

It comes with a lens cover to protect internal components(key switches,batteries,and reset buttons).

Standard two-line 16-character LCD with adjustable contrast and backlight status.

Indicator and status prompts:

The yellow indicator is controlled by the coprocessor hardware and indicates Ethernet activity.

The STS LED indicator is controlled by the coprocessor software and is used to indicate various states,such as configuration in progress,invalid MAC address,link not connected,etc.

III.Applications and Services

The 140CPU65150 is suitable for various industrial automation and control systems,such as production line automation,mechanical equipment control,security access control systems,etc.It provides a variety of services,including standard web services,Modbus TCP messages,I/O scanning services,global data,FDR client,SNMP management,and SMTP services(email).In addition,the module also supports a variety of optional modules,such as Ethernet,Modbus,Modbus Plus,Profibus DP,and Sy/Max,to meet different application requirements.

IV.Compatibility and software support

140CPU65150 is only compatible with Unity Pro software,which provides users with powerful programming and configuration tools.Through Unity Pro software,users can easily program,debug,and monitor 140CPU65150.

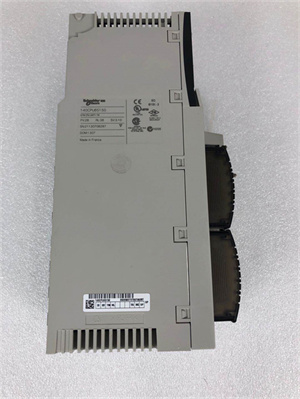

Schneider 140CPU65150

V.Environmental adaptability

The processor module has good environmental adaptability,its EMC protection capability reaches level III,and it has obtained CE certification.All electronic components are suitable for G3 severely polluted environments.In addition,all modules have online self-diagnosis functions and are equipped with panel indicators for status prompts.

In summary,Schneider 140CPU65150 is a powerful,stable,and easy-to-expand processor module suitable for various industrial automation and control systems.Through its rich communication interfaces,powerful computing capabilities and flexible configuration options,users can easily achieve comprehensive control and management of the system.
