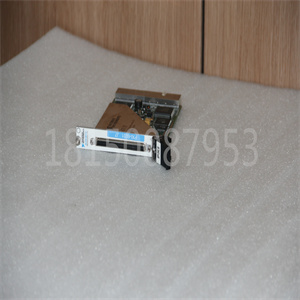

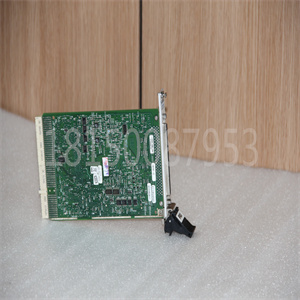

PXI-6031E NI

PXI-6031E NI

The PXI-6031E is a high-performance multifunction data acquisition module developed by National Instruments (NI). It is designed for use in PXI (PCI eXtensions for Instrumentation) systems, which are modular instruments commonly used in automated test and measurement applications.

The PXI-6031E offers analog and digital I/O capabilities, making it suitable for a wide range of applications. It features 16 differential analog inputs with a sampling rate of up to 800 kHz and 12-bit resolution. It also provides two analog outputs, 24 digital I/O lines, and two 24-bit counter/timers.

The module offers several trigger options, including software, digital, and analog triggers, allowing precise synchronization of data acquisition and control operations. It also supports advanced features such as hardware-timed analog and digital I/O, which enable reliable and precise timing measurements.

With its high-performance specifications and versatile I/O capabilities, the PXI-6031E is commonly used in applications such as automated test, data logging, signal generation, and control systems. It can be easily integrated into PXI systems using the NI LabVIEW software, a graphical programming environment that simplifies instrument control and data analysis.

Indramat MAC112B-0-LD-2-C/130-A-1

INDRAMAT MDD112C-N-015-N2M-130PA1

INDRAMAT HDS02.2-W040N-H DSS02.1M HSM01.1-FW

INDRAMAT MOD1/1X657-028

INDRAMAT r TVD1.2-08-03 TVD-1.2-08-03

INDRAMAT MAC115B-0-DS-4-C/180-B-1/WI522LV

Indramat 063A-0-ES-3-C/095-A-0

Indramat 03.1-040-7-FW

The PXI-6031E is a high-performance data acquisition device designed for measurement and control applications. It is a PXI (PCI eXtensions for Instrumentation) module that can be used in PXI chassis. Here are some details about its features and parameters:

• Analog Input Channels: The PXI-6031E has 16 single-ended or 8 differential analog input channels. It supports a wide range of input voltage levels, from ±10V to ±0.2V.
• Resolution: It provides a 12-bit resolution for analog to digital conversion.
• Sampling Rate: The maximum sampling rate is 1.25 MS/s (mega-samples per second) per channel or 15 MS/s for 8 channels.
• Analog Output Channels: It has 2 analog output channels that can generate waveform signals. The output voltage range is ±10V.
• Digital I/O Lines: There are 8 bidirectional digital I/O lines available for general-purpose digital communication or control.
• Triggering Options: The module supports various triggering options, including software-triggered, external-triggered, and analog or digital triggering options.
• Bus Interface: The PXI-6031E has a 32-bit, 33 MHz PCI bus interface. It is compliant with the PXI specification, allowing it to be used in PXI chassis.
• Software Support: The device is supported by various software development environments, such as NI LabVIEW, NI-DAQmx driver, and other programming languages like C, C++, and Python.
• Applications: The PXI-6031E is suitable for a wide range of applications, including data acquisition, process monitoring and control, scientific research, and test and measurement in industries like automotive, aerospace, electronics, and more.
