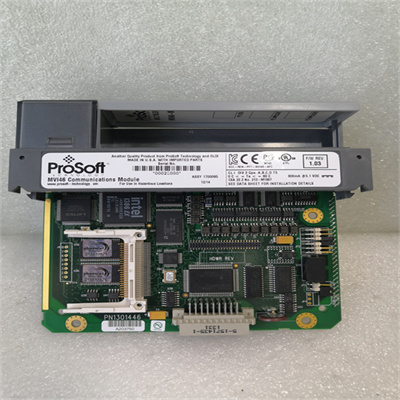

Prosoft MVI46-MCM

Prosoft MVI46-MCM is a Modbus communication module designed for industrial automation.It was developed by ProSoft Technology and is widely used in industrial automation fields that require Modbus communication.The following is a detailed introduction to Prosoft MVI46-MCM:

I.Product Overview

Main Function:The MVI46-MCM module acts as a gateway between the Modbus network and the Allen-Bradley(Rockwell Automation)backplane,enabling the SLC processor to easily connect with other Modbus protocol-compatible devices.

Supported Protocols:Supports Modbus RTU and ASCII protocols,suitable for a variety of communication needs.

Application Areas:Widely used in industries such as oil and gas,sewage treatment,food processing,petrochemicals,pulp and paper,especially in SCADA(Supervisory Control and Data Acquisition)systems as a slave or Modbus master interface for external devices.

II.Product Features

Compact Design:The module adopts a single-slot design and can be directly installed on the 1746 backplane to save space.

Multi-port configuration:

Two communication ports:Each port can be independently configured as a Modbus master or slave,supporting multiple combinations.

Port parameters can be set:including baud rate,data bit,stop bit,check bit,etc.,to meet different communication needs.

Powerful diagnostic function:

LED indicator:Provides indication of module status,backplane transmission status,application status,serial activity and error status.

Configuration and debugging port:Equipped with RJ45 debugging and configuration port,it is convenient for users to set up and troubleshoot the module.

High reliability:

Adaptability to harsh environments:The module design takes into account the harsh environment of industrial sites and has high reliability and stability.

Built-in processor:Adopts Intel 80386 processor to ensure efficient data processing.

Flexible configuration method:

Ladder diagram programming:Through RSLogix 500 software,users can use ladder diagrams to configure and monitor the module.

Rich parameter settings:Supports storage and transmission of 4000 registers from or to SLC processor user files,and can fully customize the memory usage of the module.

3.Technical parameters

Operating temperature:0 to 60 degrees Celsius

Storage temperature:-40 to 85 degrees Celsius

Relative humidity:5%to 95%(non-condensing)

Current load:800 mA 5V(from backplane)

Communication port:

Type:Two RJ45 connectors,supporting RS-232,RS-422 or RS-485 interfaces.

Included in the package:RJ45 to DB9 cable.
