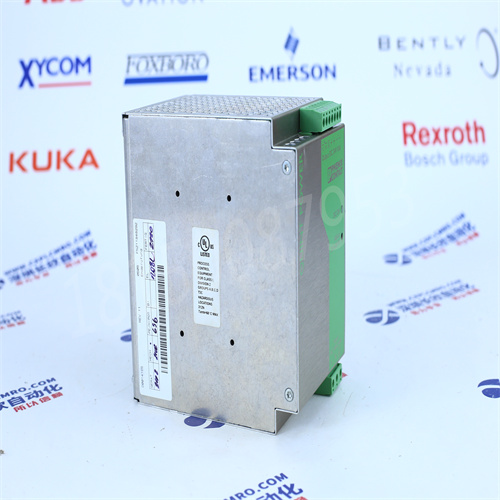

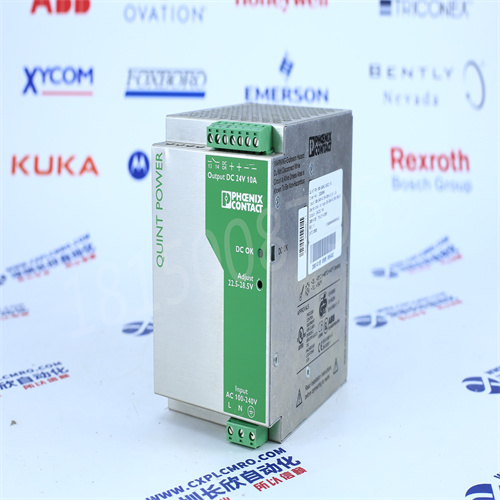

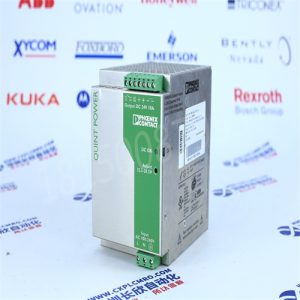

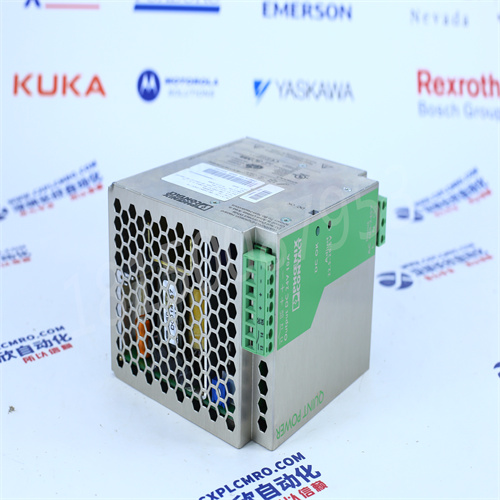

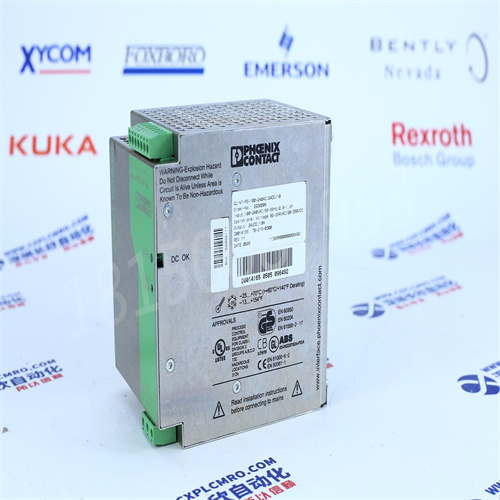

PHOENIX QUINT PS-100-240AC24DC10
Product Information:
- Manufacturer: Phoenix Contact
- Model: Quint PS-100-240AC24DC10
- Power Input: 100-240 VAC
- Power Output: 24 VDC
- Rated Power: 10 A
- Mounting: DIN rail
- Dimensions (H x W x D): 130.5 mm x 67 mm x 125.8 mm
- Weight: 735 g
- Operating Temperature: -25°C to +70°C
- Efficiency: Up to 93%
- Overvoltage Category: II
- Degree of Protection: IP20
The Phoenix Quint PS-100-240AC24DC10 is a power supply unit designed for industrial applications. It is capable of converting AC input voltage ranging from 100-240V to a DC output voltage of 24V. With a power rating of 100W, it can provide a reliable and stable power source for various electronic devices and systems.
The Quint PS-100-240AC24DC10 features a compact and rugged design, making it suitable for use in harsh environments. It has built-in protection mechanisms such as overload and short-circuit protection, ensuring the safety and longevity of connected devices.
This power supply unit also offers advanced features like power boost and power reserve functions, which provide extra power during startup or in case of a temporary increase in power demand. Additionally, it has a wide operating temperature range and can operate efficiently even in extreme conditions.
Tektronix TDS754C 500MHz 4CH 2GS/s Digital w options
DiCon GP700 Programmable Fiber Multi Switch 1×2
HP 83446A STM-16/OC048 LIGHT WAVE CLOCK/DATA RECEIVER
Melles griot 17 MMR 001 main rack with cards
Agilent 35670A Dynamic Signal Analyzer W Options
NATIONAL INSTRUMENTS 763061-01 GPIB CABLE 2Meter New
NATIONAL INSTRUMENTS 763061-01 GPIB CABLE 2Feet New
HP 81000BA,Bare Fiber Adapter.125 um,threaded
Product Features:
- Wide Input Voltage Range: The power supply can accept a broad range of input voltages, ranging from 100 VAC to 240 VAC.
- Switch-Mode Technology: The Quint PS-100-240AC24DC10 utilizes switch-mode technology, which provides high efficiency and low power dissipation.
- Diagnostic and Monitoring Functions: The power supply includes various diagnostic and monitoring features, such as DC OK signaling contacts, LED indicators for output voltage and current status, and an alarm output.
- Integrated Overload Protection: The unit is equipped with overload protection that can automatically shut down the power supply in case of a fault or excessive load.
- Redundancy and Parallel Operation: The Quint PS-100-240AC24DC10 supports redundancy and parallel operation, allowing for increased reliability and flexible configuration.
- Compact and Space-Saving Design: The power supply is designed to be mounted on a DIN rail, providing easy installation and saving valuable space in control panels.
- Suitable for Industrial Environments: The Quint PS-100-240AC24DC10 is compliant with various industrial standards, making it suitable for use in demanding environments.
