OMRON C200H-ID217

OMRON C200H-ID217

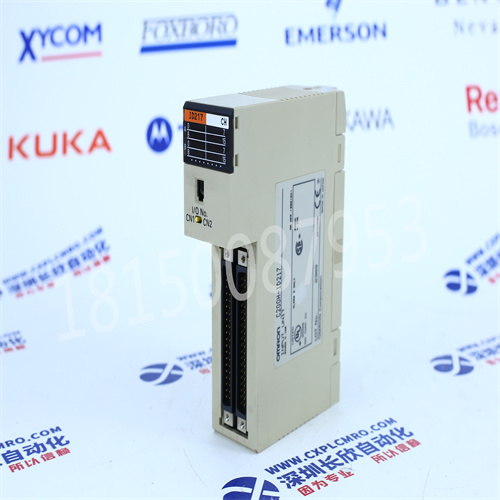

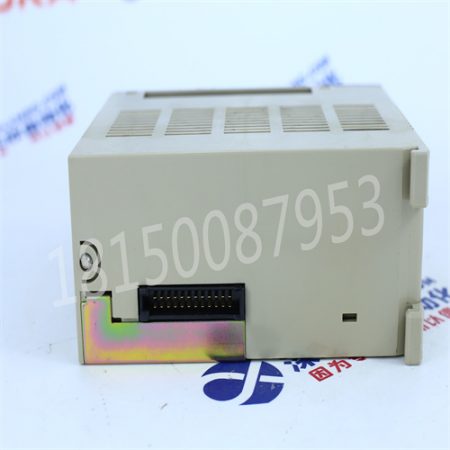

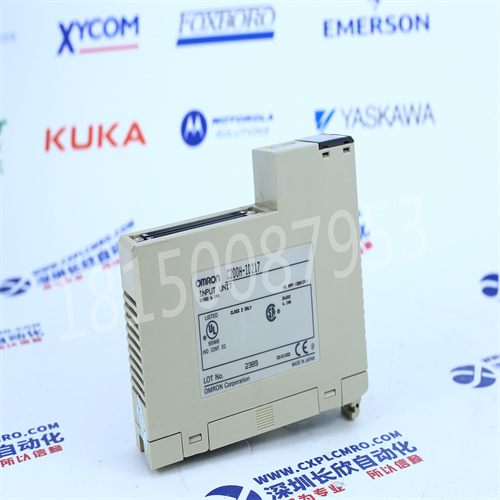

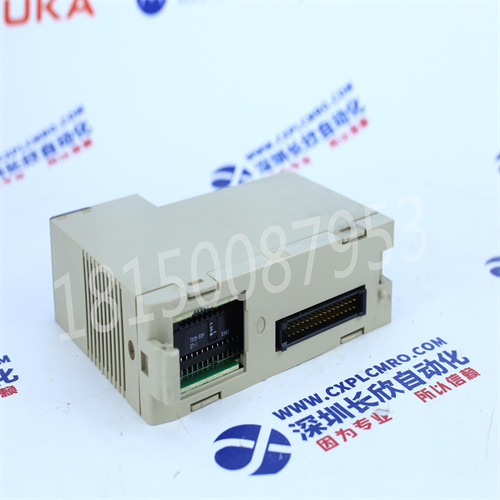

The Omron C200H-ID217 is a digital input module from the C200H series of the Omron PLC (Programmable Logic Controller) range. This module is designed to receive and process digital input signals from various external devices and sensors. It has 16 input points, each capable of accepting a 24V DC signal.

The C200H-ID217 module is equipped with LED indicators for each input point, allowing for easy identification of the status of each input. It also supports fast response time for high-speed input applications.

This module is commonly used in automation and control systems where monitoring and control of multiple digital signals are required. It can be easily integrated into the Omron C200H PLC system and programmed using the appropriate software.

Overall, the Omron C200H-ID217 digital input module provides reliable and efficient digital signal processing capabilities for industrial automation applications.

The product information materials for the Omron C200H-ID217 typically include:

1. Product Datasheet: This document provides a detailed overview of the module, including its specifications, features, and dimensions. It may also include information on the module’s installation, wiring, and connection methods.
2. User Manual: The user manual provides step-by-step instructions on how to install and configure the module. It includes information on how to wire the module to the PLC system, how to configure the input points, and how to troubleshoot common issues.
3. Programming Manual: This manual provides guidance on how to program the PLC system to interface with the module. It includes information on the programming languages supported by the system, as well as specific instructions on how to configure input points and interact with the module in a program.
4. Catalog: The catalog provides an overview of the entire Omron C200H product lineup, including the ID217 module. It may include additional information on other modules and accessories that are compatible with the ID217.

Siemens SBH 2016 SBH2016 SBH2016DV 1600 Amp SB16TP02G

Square D 2500 Amp 2500A SE SEDG25E1C1T1G2 SED362500

Westinghouse PC 2000 Amp 2000A A PC32000WK 2000A

ITE Circuit Breaker Type LG 3000 Amp A Siemens RMS Trip

Allen Bradley AB 150-A360NBRB SMC Plus 300HP Soft Start

GE Limitamp Multilin Starter 176 Amp 2.5 kV CR194A147B2

Siemens 6SE7231-8EF00-3​AB0-Z VT 125/150 HP VS AC Drive

The parameters or specifications of the Omron C200H-ID217 module may include:

1. Number of inputs: The module may have a specific number of digital input points that can be used to connect various sensors, switches, or devices.
2. Input types: The module may support different types of inputs, such as voltage or current inputs. The voltage range and current specifications may be provided.
3. Input response time: This is the speed at which the module can detect changes in the input signals. It is typically measured in milliseconds.
4. Input voltage or current range: This parameter specifies the acceptable range of input voltage or current that the module can handle.
5. Input isolation: The module may provide electrical isolation between the input channels to protect against electrical noise or grounding issues.
6. Communication interface: The module may have a specific communication interface, such as RS-232 or RS-485, to connect with the PLC system.

It is important to refer to the actual product documentation for accurate and detailed information about the Omron C200H-ID217 module.
