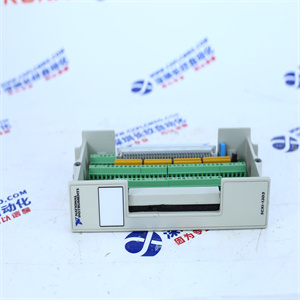

NI SCXI-1303

NI SCXI-1303

• Manufacturer: National Instruments
• Product Name: NI SCXI-1303
• Product Type: Sensor Input and Signal Conditioning Module
• Product Category: Data Acquisition System

The NI SCXI-1303 is a 32-channel isolated thermocouple input module designed for use with National Instruments SCXI modular signal conditioning systems. It provides high-accuracy temperature measurements for a variety of thermocouple types, including J, K, T, E, R, S, B, and N. The module features built-in cold-junction compensation and open thermocouple detection, as well as 3-way isolation to protect against noise and ground loops. It can be used in a wide range of applications, including industrial automation, process control, and scientific research.

Digital Dynamics XCEDA MP HDSIOC Novellus 02-185316-00

AEG PC-A984-145&DEP 220&DAP 216N&DAP 212 PLC

Novellus facility chemical interface 02-300915-00

Velconic VLPST-012P2P-XX

HV Keyence KL-16BT(2 units)

DL300/9000E control panel

Novellus facility chemical interface 02-293400-00 Rev 1

HV Olympus GIF-PQ10 Gastroscop?e

Panasonic AC servo driver MSDA023A1A

Module Specifications:

• Analog Input Channels: 32 differential or 64 single-ended
• Input Voltage Range: ±10 V
• Input Impedance: 1 MΩ || 6 pF
• Sampling Rate: Up to 1 MS/s/channel
• Resolution: 16-bit
• Isolation Voltage: 300 Vrms channel-to-channel, 300 Vrms channel-to-chassis
• Connector Type: 68-pin VHDCI (Very High-Density Cable Interconnect)
• Dimensions: 13 cm x 22 cm x 3.4 cm (L x W x H)
• Weight: 580 g

These are some of the key product information and parameters for the NI SCXI-1303 module. For more detailed specifications or for any additional information, refer to the official documentation or contact National Instruments directly.
