NI SCXI-1126

NI SCXI-1126

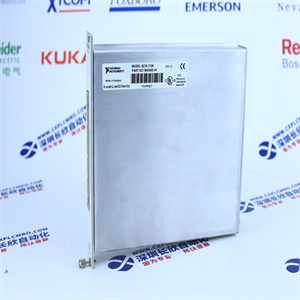

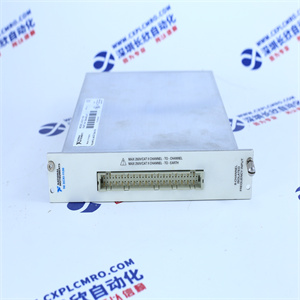

The NI SCXI-1126 is a 32-channel thermocouple input module designed for use with National Instruments SCXI modular signal conditioning systems. It provides high-accuracy temperature measurements with support for a wide range of thermocouple types, including J, K, T, E, R, S, B, and N. The module features built-in cold-junction compensation and open thermocouple detection, as well as programmable gain and filtering options for optimizing signal quality. It can be used in a variety of applications, including industrial process control, environmental monitoring, and scientific research.

Wartsila temp transmitter T501001 PN:0050L290507

Motorola MC2000 FR6074 Phone Barcode Scanner DVT ES Ver

SAM ELECTRONICS HS09 Interconnection Board GE3044G206

New EUCHNER Safety Switch TX1B-A024SEM4AS​1 094403

RICOH PPC RT39 for MP6000 MP7000 MP8000 NEW

New EUCHNER CES-A-ABA-01 CES Evaluation Unit 071850

Agilent HYPERSIL AA-ODS 5 2.1x200mm 79916AA-572 NEW

BW CR-4000 PCB Mainboard CR-4000-PCB 114879 NEW

The NI SCXI-1126 is a 32-channel thermocouple input module designed for use with National Instruments SCXI modular signal conditioning systems. It provides high-accuracy temperature measurements for a wide range of thermocouple types, including J, K, T, E, R, S, B, and N.

The module features 32 differential input channels, each with its own cold-junction compensation circuitry and programmable gain amplifier. It also includes built-in signal conditioning for linearization and cold-junction compensation, as well as open thermocouple detection and overvoltage protection.

The NI SCXI-1126 supports a maximum sample rate of 10 S/s per channel, with 24-bit resolution and a measurement accuracy of ±0.5°C (±0.1% of reading + 0.5°C). It can be used with a variety of software platforms, including NI LabVIEW, NI-DAQmx, and NI-SCOPE.

Key specifications:

• Input channels: 32 differential
• Thermocouple types: J, K, T, E, R, S, B, N
• Sample rate: 10 S/s per channel
• Resolution: 24 bits
• Accuracy: ±0.5°C (±0.1% of reading + 0.5°C)
• Input range: -270°C to 1820°C
• Built-in signal conditioning: linearization, cold-junction compensation
• Open thermocouple detection and overvoltage protection
• Compatible with NI SCXI modular signal conditioning systems
• Software support: NI LabVIEW, NI-DAQmx, NI-SCOPE
