NI SCXI-1100

Status: In Stock

Functional Features

Multi-channel design:

SCXI-1100 provides 32 differential channel voltage inputs,supporting single-ended and differential measurements.

Multiple different voltage sources(such as sensors,test instruments,etc.)can be connected to these channels at the same time for voltage measurement.

Range:

The module has a wide voltage input range to meet different measurement needs.

The specific range may vary depending on the module model and configuration.It is recommended to refer to the relevant technical documents for accurate information.

NI SCXI-1100 is a modular measurement system module launched by National Instruments(NI for short),mainly used for the acquisition of voltage input signals.The following is a detailed introduction to the product:

I.Product Overview

The SCXI-1100 module is designed for economical millivolt,volt and current signal conditioning.It provides 32 differential channel voltage inputs,which are multiplexed,with multiple gain ranges,and a jumper-selectable 4Hz low-pass filter.

II.Functional Features

Multi-channel design:

SCXI-1100 provides 32 differential channel voltage inputs,supporting single-ended and differential measurements.

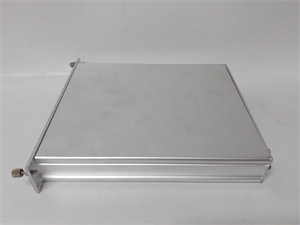

NI SCXI-1100插图

NI SCXI-1100

Multiple different voltage sources(such as sensors,test instruments,etc.)can be connected to these channels at the same time for voltage measurement.

Range:

The module has a wide voltage input range to meet different measurement needs.

The specific range may vary depending on the module model and configuration.It is recommended to refer to the relevant technical documents for accurate information.

Signal conditioning:

All channels are multiplexed and multiple gain ranges can be selected.

Comes with a jumper-selectable 4Hz low-pass filter for filtering input signals.

Compatibility:

SCXI-1100 can be used with NI’s MIO boards,such as PC-LPM-16,Lab-LC,Lab-PC+,Lab-PC,and Lab-NB.However,please note that these MIO boards can usually only complete single-channel readings and cannot scan the entire module.

The module can also be used with a variety of terminal blocks,including rack-mounted thermocouple plugs,screw terminals,BNC connectors,DIN rail mounting,solder pins,and front-mounted terminal blocks.

Additional features:

Additional shielded terminal blocks with screw terminals are used to simply connect signals to the SCXI 1100 module.

A temperature sensor for thermocouple cold-end compensation is also included on the terminal block.

NI SCXI-1100插图1

NI SCXI-1100

III.Application areas

SCXI-1100 modules are widely used in industrial automation,test and measurement systems,data acquisition systems,and education.It can provide these systems with stable and reliable voltage input signal acquisition functions to ensure the normal operation of the system and the accuracy of the data.

4.Technical Specifications

Here are some possible technical specifications(specific specifications may vary depending on product version and configuration):

Input voltage:-0.6V DC(or other specific values,please refer to technical documentation)

Product size:1.2 x 6.8 x 8.0 inches(or 100mm x 50mm x 20mm,may vary from source to source)

Product weight:1.2kg

Operating temperature range:0°C to 50°C(or-40°C to 70°C,may vary from source to source)
