NI SCXI-1000

NI SCXI-1000

Add your review

Status: In Stock

NI SCXI-1000 is a modular data collector with the following main parameters:

1. Number of channels: 16 differential/32 single ended analog input channels, expandable to 256 channels

2. Resolution: 16 bits

3. Maximum sampling rate: 100 kS/s

4. Input type: Differential/Single ended

5. Input range: ± 10 V, ± 5 V, ± 2 V, ± 1 V, ± 0.5 V, ± 0.2 V, ± 0.1 V

6. Input impedance: 1 M Ω | | 20 pF

7. External clock input: BNC interface, maximum sampling rate 10 MHz

8. External trigger input: BNC interface, which can be used to trigger collection or synchronize multiple collectors

9. Digital output: 8 digital output channels, with a maximum output current of 24 mA

10. Power requirements:+5 VDC, maximum power consumption of 6 W

11. Dimensions: 3.94 x 8.27 x 7.87 in. (100 x 210 x 200 mm)

12. Weight: 2.2 lbs (1.0 kg)

NI SCXI-1000

I SCXI-1000 is a modular data collector that can be used to measure and control various physical quantities, such as temperature, pressure, voltage, current, etc. Here are the usage methods:

1. Connect the sensor: Connect the sensor to the analog input channel of NI SCXI-1000. Various types of sensors can be used, such as thermocouples, resistance thermometers, pressure sensors, etc.

2. Connect the power supply: Connect the NI SCXI-1000 to the power supply and use an adapter or battery to power it.

3. Connect the computer: Connect the NI SCXI-1000 to the computer using a USB or Ethernet interface.

4. Configuration software: Use NI DAQmx software to configure NI SCXI-1000 and select parameters such as sampling rate, number of channels, and sensor type.

5. Start collection: Start the NI DAQmx software to start collecting data. Data can be saved to a computer hard drive or other storage device for subsequent analysis and processing.

NI SCXI-1000插图

InterTech CalMaster CM-15 Leak Detector Calibrator

New GE Drive IC3600 TLFC1 C Module IC3600TLFC1

Allen-Bradley 7300-UME With VDZ CNC Control Board

New GE Drive IC3600 LINA1 Module IC3600LINA1

New GE Speedtronics IC3600 AVLA1 Board IC3600AVLA1

New GE Drive IC3600 KRSV1 Module IC3600KRSV1

REFURBISHED Allen-Bradley 7300-UPW-1 Interface Board

New GE Speedtronics IC3650 SGDB2 Board IC3650SGDB2

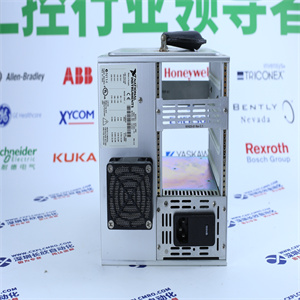

NI SCXI-1000插图1

The NI SCXI-1000 is an excellent signal conditioner with multiple outstanding advantages, making it an ideal choice:

1. Powerful signal processing capability: NI SCXI-1000 has excellent signal processing capabilities, capable of efficiently processing various signal types, including analog and digital signals.

2. High precision and stability: The signal conditioner has excellent accuracy and stability, and can provide accurate and reliable signal processing results.

3. Flexible scalability: The NI SCXI-1000 supports flexible modular design and can easily expand signal processing capabilities according to actual needs, meeting the needs of different application scenarios.

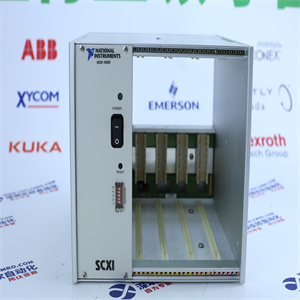

4. User friendly interface: This signal conditioner provides an intuitive and easy-to-use user interface, allowing users to easily configure and control the signal processing process. NI SCXI-1000插图2
