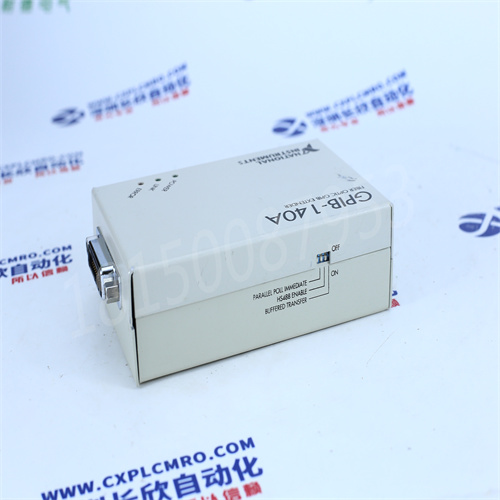

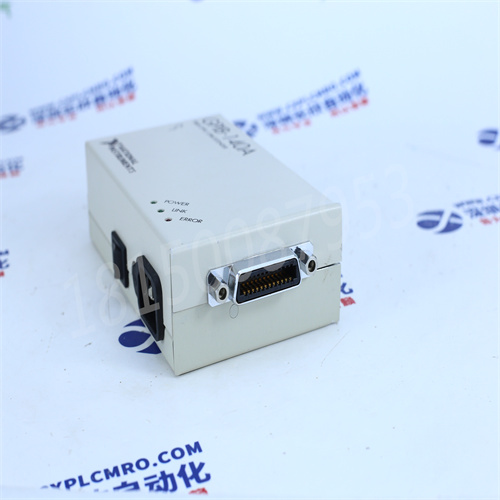

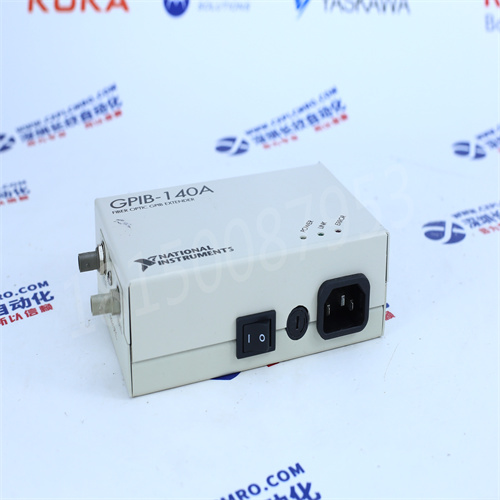

NI GPIB-140A

NI GPIB-140A

The NI GPIB-140A is a GPIB interface card designed for use with National Instruments’ GPIB controllers. It provides a high-speed interface between a computer and GPIB devices, allowing for easy control and communication with instruments such as oscilloscopes, spectrum analyzers, and power supplies.

The GPIB-140A supports transfer rates of up to 1.5 MB/s and is compatible with both IEEE 488.1 and IEEE 488.2 standards. It features a 24 mA output current and can drive up to 14 devices on the GPIB bus.

The card is designed to be easy to install and use, with plug-and-play compatibility and automatic configuration. It also includes a range of software tools for programming and controlling GPIB devices, including NI-488.2 driver software and LabVIEW GPIB libraries.

Agilent 8702A Lightwave Analyzer 300k-6Ghz w opt

JDS SA8MTA200 1×4 switch plug-in for MTA Mainframe

Sii Seiko Model OFL-12 Fiber Polisher

Corning SMF LS Optical Bare Fiber100 km

Santec Wave LengthTunable Semiconductor Laser TSL-210

TEKTRONIX TDS744A Digitizing Oscilloscope w opts.

LeCroy 9384AL Oscilloscope 1GHz,4GSa/s,4ch

Tektronix Model 7854 4 Channel Oscilloscope.With Opt.

Some of the key features and parameters of the NI GPIB-140A include:

• GPIB interface: IEEE 488.1 and IEEE 488.2 compatible
• Transfer rate: Up to 1.5 MB/s
• Connector: DB-25 male
• Bus length: Up to 20 meters
• Compatibility: Compatible with Windows and Linux operating systems
• Software support: Compatible with NI-488.2 driver software and NI LabVIEW
• Power requirements: +5 VDC, 500 mA maximum
• Dimensions: 14.1 cm x 10.2 cm x 2.5 cm (5.56 in x 4.02 in x 0.98 in)
• Weight: 0.2 kg (0.44 lbs)
