NI-9220 PLC1 Product Details, Specifications, Parameters, and Application Fields

Product Details:

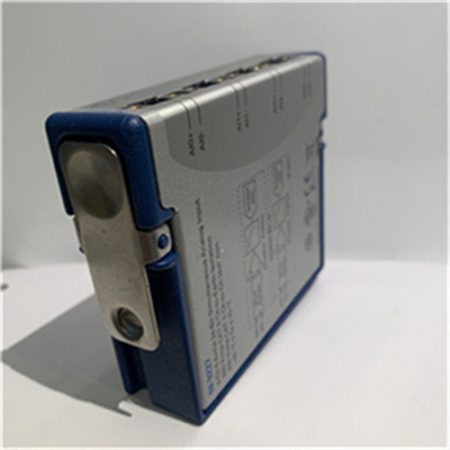

The NI-9220 is a voltage input module specifically designed for high-precision data acquisition. It belongs to the C Series of modules produced by National Instruments (NI) and is known for its reliable and durable performance. This module features 16 channels of voltage input, capable of handling a range of ±10V. With a 16-bit resolution and a maximum sampling rate of 100 kS/s/ch, it ensures accurate and timely data acquisition.

Specifications and Parameters:

Channels: 16 channels of voltage input.
Input Range: ±10V.
Resolution: 16 bits.
Sampling Rate: 100 kS/s per channel.
Isolation: 250 Vrms CAT II or 60 VDC CAT I.
Synchronization: Capable of synchronous differential analog input.
Data Generation Rate: Up to 3.2 MB/s.
Connector Options: Available with 36-hole spring terminal connectors or 37-hole D-SUB connectors.

Application Fields:

The NI-9220 is well-suited for various industrial automation and data acquisition applications where precision and real-time performance are critical. It can be integrated into PLC-based systems to provide accurate voltage measurements and monitoring. Whether it’s in a manufacturing line, a test bench, or a research laboratory, the NI-9220 offers a robust solution for capturing and processing analog voltage signals.

Moreover, due to its compatibility with National Instruments’ software and hardware ecosystem, the NI-9220 can be easily integrated into larger systems and controlled using NI’s programming environments, such as LabVIEW, enabling seamless data acquisition and system control.

Please note that the specifications and parameters mentioned above may be subject to change as new versions or updates are released. It is always recommended to refer to the official documentation from National Instruments for the most up-to-date and accurate information on the NI-9220 voltage input module.

Also, when using the NI-9220 or any other industrial automation equipment, it is crucial to follow the manufacturer’s guidelines and safety recommendations to ensure safe and reliable operation.
