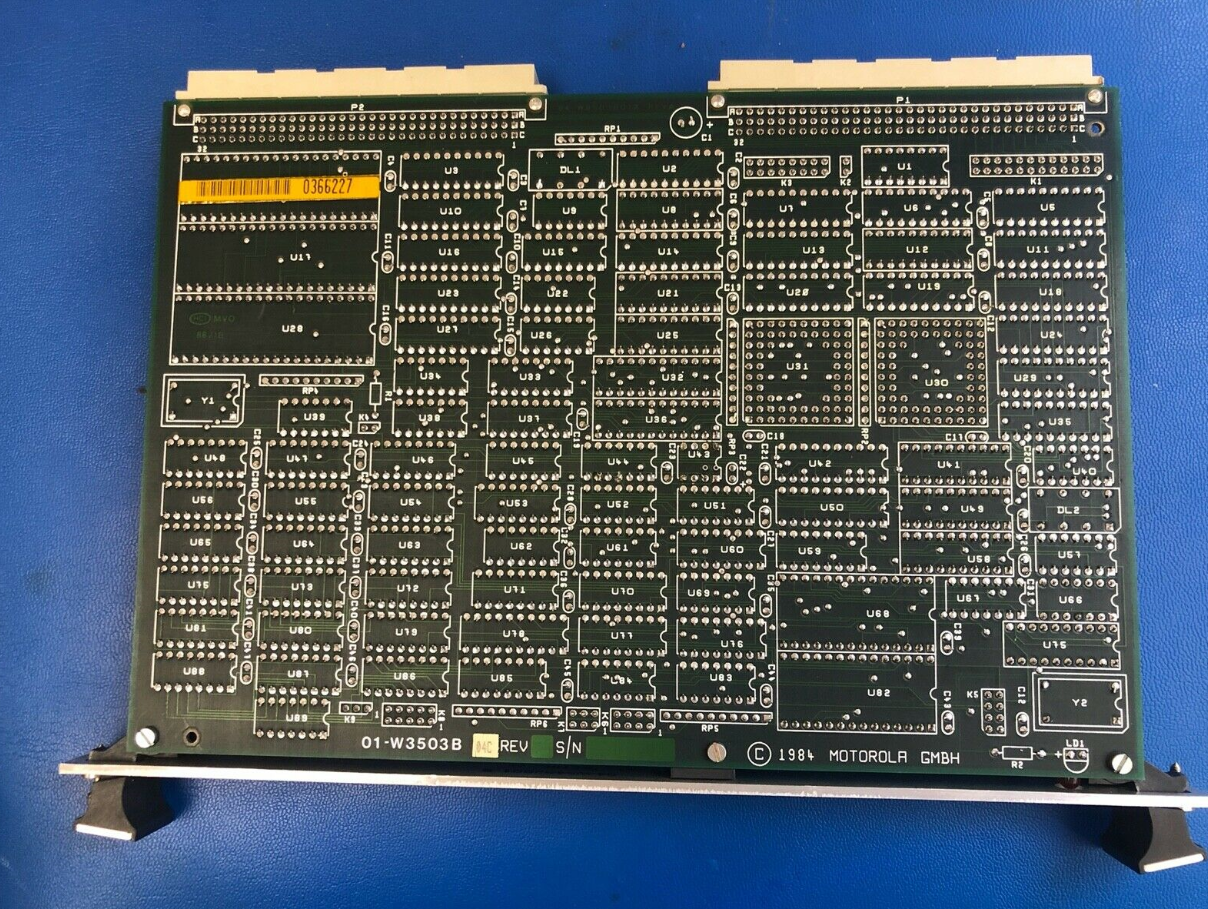

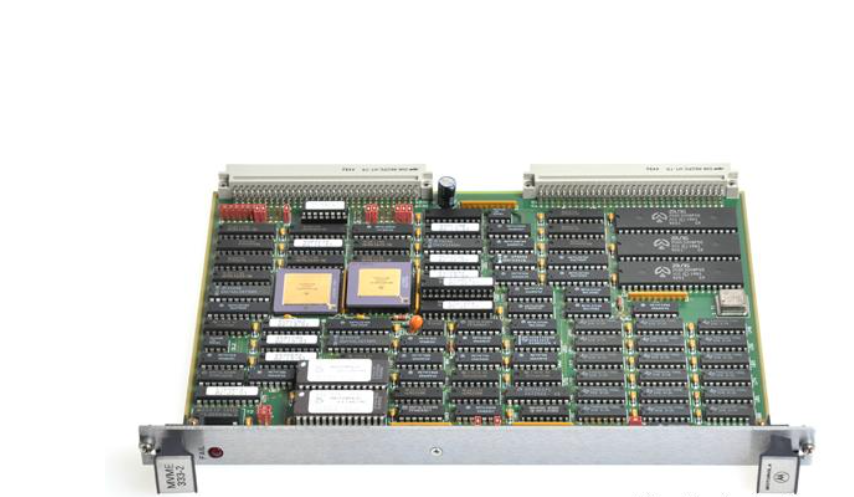

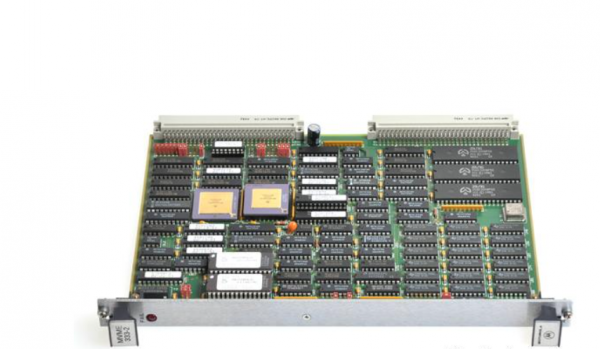

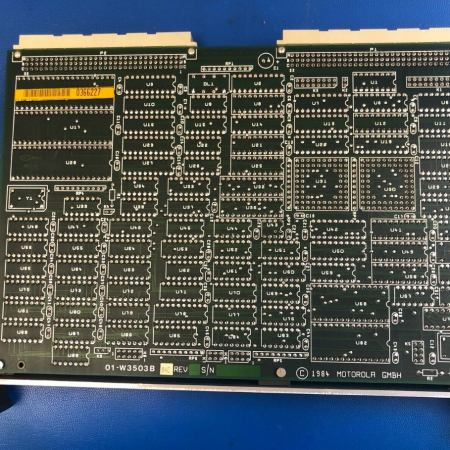

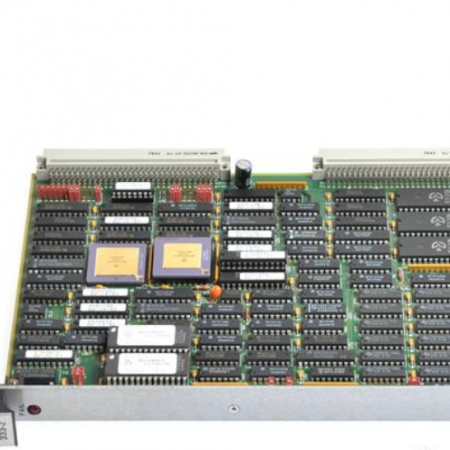

MVME333-2 MOTOROLA Controller Communication Module

Product Description

The MVME333-2 MOTOROLA controller communication module serves as an interface between communication and controllers,enabling data exchange and instruction transmission.

feature

6 serial I/O ports

Supports synchronous and asynchronous communication

128 Kb dynamic RAM

High speed bidirectional DMA on two channels

Motorola MVME333S-2 is a VMEbus intelligent communication controller with 6 serial I/O ports that can be configured as synchronous or asynchronous,as well as RS-232C or RS-422 electrical protocols.The onboard intelligence includes a 10 MHz MC68010 CPU,two firmware slots,and 128 Kb dynamic RAM for data buffering.It has firmware for implementing asynchronous protocols on all six channels(achieving up to 9600 baud rates in both directions on all channels simultaneously).In addition,there is high-speed bidirectional DMA on both channels,which can achieve synchronization protocols up to 1 Mb/second.

MVME333-2 is a high-performance controller communication module designed to enable data exchange and control functions between various embedded systems and communication devices.

The MVME333-2 module adopts Motorola’s advanced technology,integrates communication interfaces,processors,and other necessary circuits,supports multiple communication protocols such as Ethernet,RS-232,RS-485,etc.,and can achieve high-speed and stable data transmission and control.

application area

The MVME333-2 MOTOROLA controller communication module is widely used in embedded systems,industrial automation,communication equipment,military electronics and other fields,such as aviation electronics,missile guidance,satellite communication,robot control,etc.
