MVI69E-MBS PROSOFT

MVI69E-MBS PROSOFT

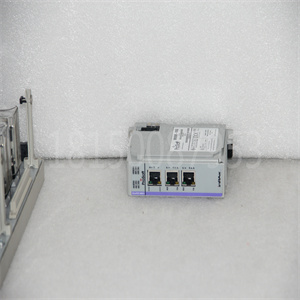

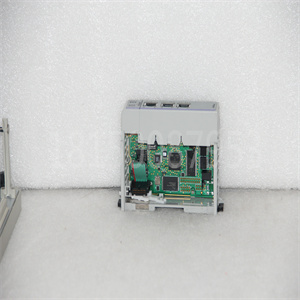

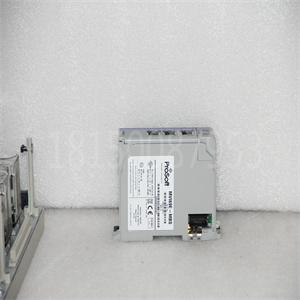

The MVI69E-MBS is a Modbus TCP/IP Communication Module by ProSoft Technology. It is designed to provide communication capabilities between Allen-Bradley ControlLogix controllers and Modbus TCP/IP-compatible devices or networks.

Product Information:

• Product Type: Modbus TCP/IP Communication Module
• Manufacturer: ProSoft Technology
• Model Number: MVI69E-MBS
• Compatibility: Allen-Bradley ControlLogix controllers
• Communication Protocol: Modbus TCP/IP
• Communication Interface: Ethernet

The MVI69E-MBS is an expansion module manufactured by ProSoft Technology. It is designed to provide Modbus Master/Slave communication capabilities to the Allen-Bradley CompactLogix and MicroLogix platforms.

This module supports up to 32 Modbus TCP/IP Client connections and allows data exchange between various devices, such as PLCs, RTUs, and HMIs, using the Modbus protocol. It also supports Modbus RTU and Modbus ASCII serial communication.

The MVI69E-MBS module offers features such as advanced diagnostics, data logging, and event capturing. It is equipped with LED indicators for quick status monitoring and configuration switches for easy setup.

With its easy and convenient installation, the MVI69E-MBS expansion module provides a reliable and efficient solution for integrating Modbus devices into the Allen-Bradley control systems.

Indramat HDS03.2-W100-HS32-01-FW+HSM01.1-FW

INDRAMAT 3TRK2-G12-W0/00?1 2 PULS-THYR.-REGE?LVERSTRKER

INDRAMAT Permanent Servomotor MDD093C-N-030-N2L-110PA0

Indramat Modul DSM 2.1-C11-01-M8

Indramat MAC 112C-0-kD-4-C/180-A-1/WI522LV/S011

Indramat AC Servo Controller DDS 2.1-F050-D

REXTOTH INDRAMAT SPS MTS-P01.1-S1-B1-E1-NN-NN-FW

Product Parameters:

1. Module Type:

• The MVI69E-MBS is an Ethernet-based module that allows ControlLogix controllers to communicate with Modbus TCP/IP devices.

1. Communication Protocol:

• The module utilizes the Modbus TCP/IP protocol for communication.

1. Communication Interface:

• The module is equipped with an Ethernet port for communication with the ControlLogix controller and Modbus TCP/IP devices or networks.

1. Supported Data Types:

• The module supports a wide range of data types, including boolean, integer, floating-point, etc. It also supports complex data types, such as strings and arrays.

1. Supported Function Codes:

• The module supports a variety of Modbus function codes, including read and write single/multiple coil/holding registers, read and write discrete inputs, read and write input registers, etc.

1. Configuration:

• The MVI69E-MBS module can be configured using the Rockwell Automation RSLogix programming software. Configuration options include defining the communication parameters, such as the IP address, port number, slave device addresses, data types, etc.

1. Diagnostic Information:

• The module provides diagnostic information such as communication status, error codes, and counters. This information can help troubleshoot communication issues and monitor the module’s performance.

1. Firmware Updates:

• ProSoft Technology periodically releases firmware updates for the MVI69E-MBS module. These updates may include new features, bug fixes, and improvements in communication capabilities.

Note: For detailed and accurate product information, always refer to the manufacturer’s documentation and specifications.
