MTL5053

The MTL5053 is a fieldbus device designed to extend 31.25kbit/s(H1)fieldbus networks into hazardous areas and provide power and communications to devices powered via signal conductors.The following is a detailed introduction to the MTL5053:

I.Main Features

Extending fieldbus networks:

The MTL5053 is able to extend fieldbus networks into hazardous areas such as Zone 0,IIC,T4-6,etc.,if properly certified.

Providing power and communications:

The device provides the required power to devices powered via signal conductors and also enables communication functions.

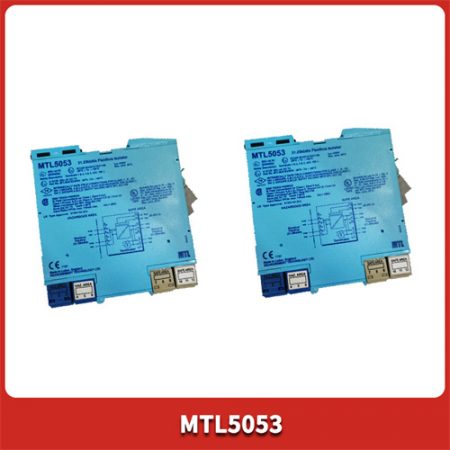

MTL5053

Wide measurement range and high accuracy:

The MTL5053 has a wide measurement range for specific industrial applications and ensures accurate temperature measurements over a wide temperature range.

Its design focuses on high-precision temperature measurements with a small error margin to ensure accurate control and monitoring of industrial processes.

Fast response:

The MTL5053 transmitter has a fast response time,which can quickly detect temperature changes and adjust the control system in a timely manner.

Easy installation:The device is easy to install on standard rails and complies with EN50022,BS5584 and DIN46277 standards.

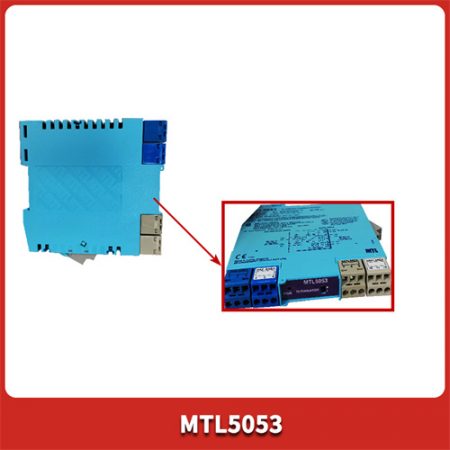

MTL5053

2.Technical specifications

Hazardous area fieldbus power supply:

18.4V±2%,105Ω±3%DC impedance.

Maximum current:

80mA.

Maximum cable length:

Determined according to IS requirements,depending on other devices connected and the maximum acceptable voltage drop along the cable.

Digital signal transmission:

Compatible with 31.25kbit/s fieldbus system and complies with fieldbus standards.

Output signal:

The transmitter provides a standard output signal,usually 4-20mA or 0-10VDC signal,which is easy to integrate with control systems and instruments.

3.Application scenarios

MTL5053 has a wide range of applications in industrial automation and control due to its high accuracy,wide measurement range and fast response.It is particularly suitable for occasions where it is necessary to extend the fieldbus network to hazardous areas and provide power and communication at the same time.For example,in the petroleum,chemical,natural gas and other industries,MTL5053 can be used to monitor and control temperature parameters in various hazardous areas to ensure the safety and stability of the production process.

IV.Installation and precautions

Installation:

MTL5053 should be installed in a safe area or explosion-proof enclosure to ensure safe operation in hazardous areas.

All MTL5000 series isolators can be installed on T35 DIN rails with low cross-section(7mm)or high cross-section(15mm).

Precautions:

When installing and using MTL5053,ensure that the equipment has been properly certified and complies with relevant standards and regulations.

Attention should be paid to the length and impedance matching of the cable to ensure the stability and reliability of signal transmission.

During use,the equipment should be maintained and inspected regularly to ensure its normal operation and extend its service life.

In summary,MTL5053 is a powerful and excellent fieldbus device with high accuracy,wide measurement range and fast response.It has broad application prospects in the field of industrial automation and control,and can provide reliable solutions for temperature monitoring and control in various hazardous areas.
