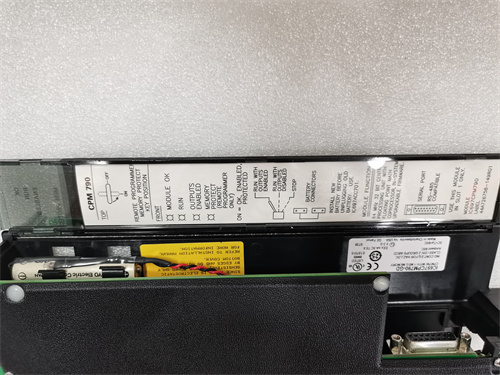

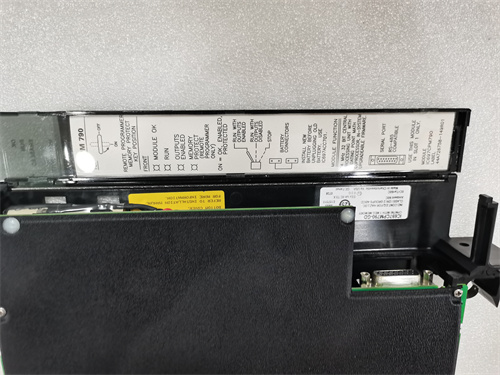

Motorola IC697CPM790-GD

Motorola IC697CPM790-GD is a central preprocessing unit(CPU).Here is a detailed introduction to it:

1.Product Overview

The Motorola IC697CPM790-GD is a CPU module for the 90-70 series programmable logic controller(PLC),produced by the Motorola brand of General Electric(GE)(note that Motorola has now been acquired by GE,so this product is often referred to as GE Motorola or GE FANUC products).It is designed for critical applications such as emergency shutdown systems,fire alarm systems,gas control systems,etc.

2.Technical Features

Modular design:

The CPU is a single-slot wide module for easy installation and configuration in the PLC system.

Triple Media Redundancy(TMR)Support:

Triple media redundancy is supported by integrating independent C programs to improve system reliability and stability.

The TMR setup basically consists of a triple PLC rack,each rack has an IC697CPM790-GD CPU,triple Genius I/O bus,and triple input sensors and triple output loads.

Large Memory:

Equipped with 1MB of battery-backed memory,of which up to 512KB is available for user programs.

Supports ladder diagram programming language for easy user program design and configuration.

High-Performance Processor:

Equipped with a 2DX64 microprocessor with a clock speed of 80486 MHz,it provides a relatively fast scan rate(0.4 microseconds per Boolean function)for critical applications.

Rich I/O Capabilities:

When configured in simplex mode,it supports up to 12K discrete input and output points in any combination.

Supports up to 2048 voting discrete inputs and 2048 voting discrete outputs.

Capable of handling up to 8K analog inputs and outputs,any combination of analog inputs and outputs when running in simplex mode,and has 1024 voting analog inputs.

Communication Interface:

Equipped with a 15-pin sub-D connector for communication with RS485 compatible devices.

Specific converters(such as IC422ACC485 or IC232ACC422)can be used to establish communication with other types of devices(such as programming computers).

Other functions:

Support password-controlled machine access to ensure system security.

Equipped with a 3-position operation mode control switch and a battery-powered calendar clock,it is convenient for users to set time and switch modes.

3.Application fields

Motorola IC697CPM790-GD is suitable for various industrial automation fields,such as manufacturing,petrochemical,electric power,transportation,etc.In these industries,it can be used as a core component of the monitoring and control system to realize real-time monitoring,data recording,alarm prompts and other functions of the equipment,and improve production efficiency and safety.
