Motorola MVME5500

Motorola MVME5500 is a high-performance single-board computer designed for embedded systems.The following is a detailed introduction to it:

I.Product Overview

As the flagship product of Motorola’s VME product line,MVME5500 has been widely used in industrial automation,aerospace,defense,medical equipment,and communication systems with its excellent performance and rich functions.It combines advanced processor technology,high-speed bus architecture and multiple I/O interfaces to provide users with powerful computing power and flexible scalability.

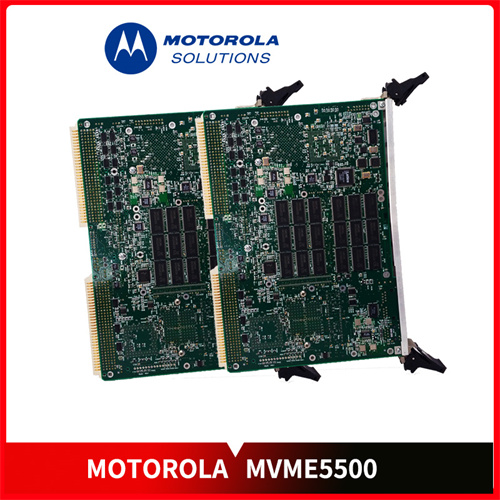

Motorola MVME5500

II.Main Features

High-performance processor:

MVME5500 is equipped with a high-performance processor such as MPC7455 or MPC7457(the processor models mentioned in different materials may be different,but they are all high-performance PowerPC processors),with an operating frequency of up to 1GHz or higher,providing an ideal computing platform for data-intensive applications.

High-speed bus architecture:

It uses dual independent 64-bit PCI buses and PMC sites,with a bus speed of up to 66MHz,ensuring a perfect match between system I/O and excellent processor performance.

Rich I/O interfaces:

It provides Gigabit Ethernet interface,10/100BaseTX Ethernet interface,serial port and other communication interfaces,as well as 64-bit PCI expansion mezzanine connector,which can add up to four PMC I/O modules,meeting users’various communication and expansion needs.

High reliability and stability:

MVME5500 adopts advanced heat dissipation design and power management technology to ensure the stable operation of the system in harsh environments.At the same time,it also supports a variety of reliability technologies,such as ECC memory,which further improves the stability and reliability of the system.

Flexibility and scalability:

It provides a variety of memory and storage options,such as 512MB onboard SDRAM ECC memory(expandable to 1GB via memory mezzanine card),and 40MB flash memory(32MB soldered and 8MB socketed),etc.,to meet users’choices for different storage needs.

At the same time,the MVME5500 also supports a migration path from boards such as the MVME2300,MVME2400,MVME2600,MVME2700 and MVME5100,allowing users to take advantage of features such as the MPC7455 processor,Gigabit Ethernet and dual independent 33/66MHz PMC sites.

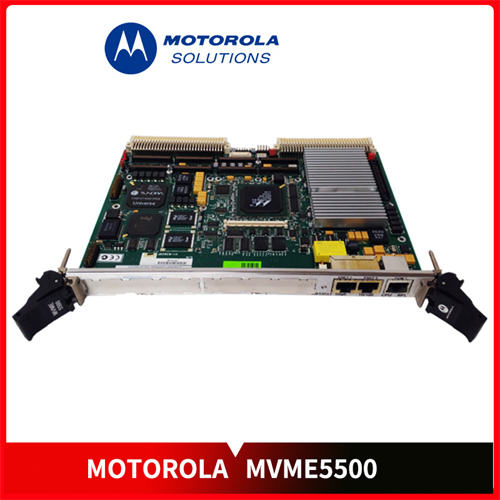

Motorola MVME5500

III.Technical Specifications

Here are some possible technical specifications(please note that these specifications may vary depending on product version and manufacturer):

Processor:MPC7455 or MPC7457 PowerPC processor,running at frequencies up to 1GHz or higher.

Memory:512MB onboard SDRAM ECC memory(expandable to 1GB).

Storage:40MB flash memory(32MB soldered and 8MB socketed).

I/O interface:Gigabit Ethernet interface,10/100BaseTX Ethernet interface,serial port,etc.

Bus:Dual independent 64-bit PCI bus and PMC site,bus speed up to 66MHz.

Size:Conforms to the 6U VME standard size.

Operating temperature:0°C to 60°C(storage temperature-40°C to 85°C,humidity 10%to 90%non-condensing).

IV.Application fields

The Motorola MVME5500 is widely used in industrial automation,robotics,aerospace and defense,medical equipment,and communication systems.In these fields,it provides powerful computing power and multiple interface support to meet users’needs for high performance,high reliability and flexibility.

V.Summary

The Motorola MVME5500 is a powerful,highly reliable,and highly scalable embedded single-board computer.It combines advanced processor technology,high-speed bus architecture,and multiple I/O interfaces to provide users with excellent computing performance and flexible scalability.Whether in industrial automation,aerospace or defense,the MVME5500 can provide users with excellent performance and stable performance.
