MOOG D136-001-007.1

The MOOG D136-001-007 product, while the exact version you’ve mentioned as “D136-001-007.1” might be a typo or a specific variant not explicitly detailed in the publicly available information, I can provide a summary of the MOOG D136-001-007 product parameters, specifications, dimensions, weight, series, features, and applications in English based on the information gathered.

Product Overview:

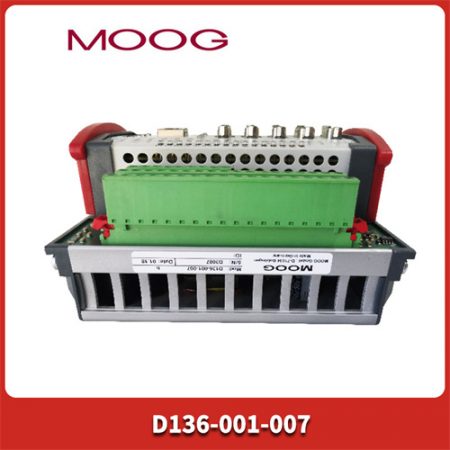

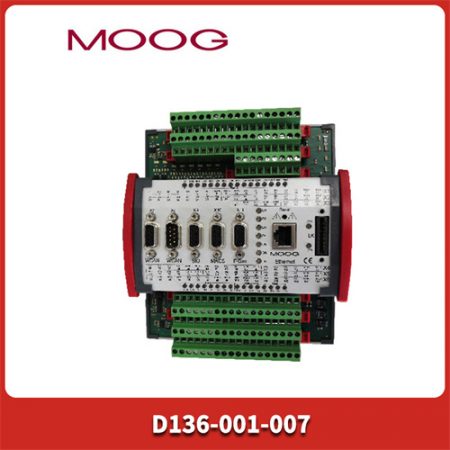

The MOOG D136-001-007 is a high-performance servo controller from MOOG, a renowned manufacturer of motion control systems and components. This servo controller is designed for precise and efficient control of industrial automation systems.

Product Parameters and Specifications:

• Brand: MOOG
• Model: D136-001-007
• Type: Servo Controller with PLC Functionality
• Ethernet: Supported¹
• CAN/CANopen: 2 Channels¹
• Position Sensors: 2 Interfaces¹
• Analog I/O: 8 Inputs, 2 Outputs¹
• Digital I/O: 8 Channels¹
• Sensor Interfaces: 2¹
• Protection Rating: IP20 (though mentioned as IP67 for rugged environments in some contexts)¹²
• Input Voltage: AC 220V³
• Output Voltage: DC 0-10V³
• Output Current: 0-20mA³
• Control Precision: 0.1%³
• Control Method: PID Closed-Loop Control³
• Operating Temperature: -10°C to 50°C³
• Storage Temperature: -20°C to 70°C³
• Dimensions: 120mm × 80mm × 40mm³
• Weight: 0.5kg³

Series Information:

• Part of MOOG’s MSC I (Motion Servo Controller I) series⁴.

Distinct Features:

• High-Resolution Analog I/O: Enables precise control and monitoring of system parameters¹.
• Modular Design: Provides flexibility in system configuration and expansion⁵.
• Multi-Axis Control: Capable of controlling up to 30 axes for complex motion profiles⁵.
• Fast Cycle Times: Loop times as low as 100 microseconds for fast control responses⁴.
• PLC Functionality: Integrated PLC allows for programming of control logic and sequences¹⁴⁵.
• Ethernet, USB, CAN, and Other Bus Interfaces: Facilitates communication with other devices and systems⁴.
• Robust and Reliable: Designed for use in harsh industrial environments².

Applications:

• Industrial automation and robotics⁴⁵.
• Motion control systems requiring precise positioning, speed, and force control⁴⁵.
• Hydraulic and electric servo drive systems⁵.
• Material handling and assembly machinery².

Note: The information provided is based on the latest available data as of the search conducted. Always refer to the official MOOG documentation or datasheets for the most accurate and up-to-date specifications. Also, note that “D136-001-007.1” might be a specific variant or revision not covered directly in this response, so it’s important to confirm the exact model number with the manufacturer.
