- MODICON AS-BADU-204 Product Details, Specifications, Parameters, and Application Fields
-
Product Details:

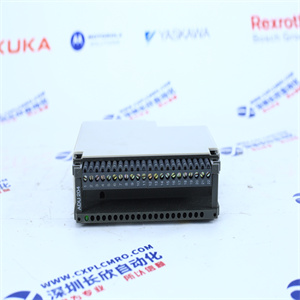

- The MODICON AS-BADU-204 is an analog input module manufactured by Schneider Electric. This module offers four channels, lacks optical isolation, and performs multiple tasks, including dual-slope integral A/D conversion, converting analog values into 12-bit digital values.
-
Product Specifications:
- Channels: The AS-BADU-204 features four analog input channels.
Isolation: It lacks optical isolation between its channels.
Conversion: The module performs dual-slope integral A/D conversion, converting analog signals into 12-bit digital values.
Compatibility: It can be used with two-wire +/- 500 mV sensor field units or PT100 four-wire resistance temperature detectors.
Manufacturing: The product is made in France and designed for use in material handling, packaging, and textile machinery.
Warranty: It comes with a 2-year warranty from MRO Electric. -
Product Parameters:
MODICON AS-BADU-204
- Power Supply: The module requires an external power supply of 250mA at 24VDC. If not used, it can draw power from the internal bus but may provide erroneous readings.
Current Loop Detection: It has an open-circuit current loop (disconnection) detection feature, indicated by an LED and accessible register.
Retention of Last Value: In the event of communication loss with the CPU for more than 1 second, CPU shutdown, or power loss, the module can be configured to retain the last value.
LED Indicators: An amber LED indicates module faults, while a green LED on the front indicates module readiness. -
Application Fields:
MODICON AS-BADU-204
- The MODICON AS-BADU-204 finds its applications primarily in industrial automation systems. It can be used in material handling, packaging, and textile machinery. Furthermore, its multi-tasking capabilities, such as A/D conversion, make it suitable for a wide range of analog signal processing applications.
- It is recommended to consult with Schneider Electric or a qualified industrial automation integrator for detailed information and assistance when considering the MODICON AS-BADU-204 for specific applications.
-
