IC698PSA350 GE power module

Product Description

The IC698PSA350 GE power module provides stable and reliable DC or AC power supply for industrial equipment,ensuring normal operation of the equipment.

feature

High efficiency:able to quickly and effectively convert input power into the required output power.

Good stability:With excellent power regulation ability,ensuring stable output voltage.

High reliability:Through strict quality control and environmental testing,it ensures stable operation in various harsh environments.

Protection function:Equipped with overvoltage,overcurrent,overheating and other protection functions to ensure equipment safety.

The IC698PSA350 GE power module is a high-performance power module designed by GE for the field of industrial automation.It has high efficiency,stability,and reliability,and can provide stable power support for various industrial equipment.

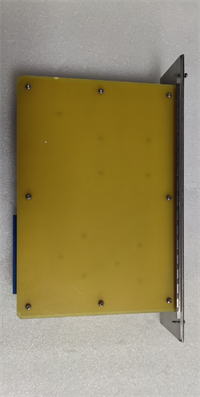

IC698PSA350 GE power module

Adopting advanced power conversion technology and high-quality electronic components,it has a compact size,lightweight weight,and easy to operate interface,making it convenient for users to install and use.

IC698PSA350 is a power module that is part of the PACSystem RX7i platform.It is currently under Emerson Automation and was previously produced by GE Intelligent Platform(GE IP).This power supply is installed on the RX7i universal backplane.Its input voltage range is 85 to 264 VAC,47 to 63 Hz,and 100-150VDC,with a maximum input power of 440 watts(typical value)and 500 watts(maximum value).The maximum output power of all three(3)outputs(such as 5 VDC,12 VDC,and-12 VDC)is 350 watts,with output currents of 0-60 amperes,0-12 amperes,and 0-4 amperes,respectively.

IC698PSA350 is a high-capacity power module in the PACSystem RX7i controller series.This module is used to provide backplane power,which activates internal circuits and makes them operable.This power module occupies one slot in the chassis and is designed to be installed only in slot 0 of the RX7i rack.

The working input power supply voltage of IC698PSA350 is 85 to 264 VAC,100-150 VDC,and the AC input frequency is 47-63 Hz.The nominal rated voltage of this module is 120/240 VAC and 125 VDC,with input power requirements of 440 watts(typical)and 500 watts(maximum).When used for AC input power supply,the power factor of this power module is 0.99.

IC698PSA350 is a single slot power module installed in the leftmost slot or slot 0 of the RX7i rack.It is equipped with various LED status indicator lights to help identify the operating status of the module.These indicator lights include Field OK,OUTPUT OK,and Over TEMP LEDs.This power module is equipped with built-in protection circuits for over temperature,over voltage,and airflow protection.There is a 70 CFM forced air cooling fan located below the system chassis,providing cooling air for the power module.If a stop in airflow is detected,the Over TEM LED indicator will light up.

The IC698PSA350 power supply comes in both A-series and B-series versions.The A series power supply is equipped with a 0.25″x 1.25″fuse inside,while the B series power supply is equipped with a 5 x 20 m fuse inside.The installed fuse is an 8A/250V fuse.

The IC698PSA350 power module belongs to the RX7i series and is manufactured by GE Fanuc.This module is able to send logic level signals to the module through the backplane.Its rated output power is 350 watts.The rated working voltage is 120/240 volts AC and 125 volts DC.The operating frequency of the power module is between 47 and 63 Hz.The operating temperature range of this module is from 0 to 60 degrees Celsius.The power module is equipped with an airflow sensor,which can easily detect fan faults or stopped airflow around the driver.If any situation occurs,the LED will light up if the temperature is too high.Sensors can be enabled or disabled by using external jumpers on the module.

During installation,the GE Fanuc IC698PSA350 power module should not have any live power connections and should be properly grounded.For field wiring,the input terminals are located on the front of the module and can be connected to 120/240V AC and 125V DC input voltage sources.Terminals can be connected to solid wires or twisted wires.The grounding terminal or GND should be connected to the GND terminal of the rack using a 12 AWG wire.The ambient temperature in the installation area during normal operation should not exceed 60 degrees Celsius.The isolation rating for all outputs is 1500 volts DC.The traversal time of the IC698PSA350 module is 15 milliseconds,and the holding time is 5 milliseconds.

application area

The IC698PSA350 GE power module is suitable for various industrial automation and process control fields,such as petrochemicals,power,water treatment,pharmaceuticals,food processing,etc.,providing stable power support for various industrial equipment.
