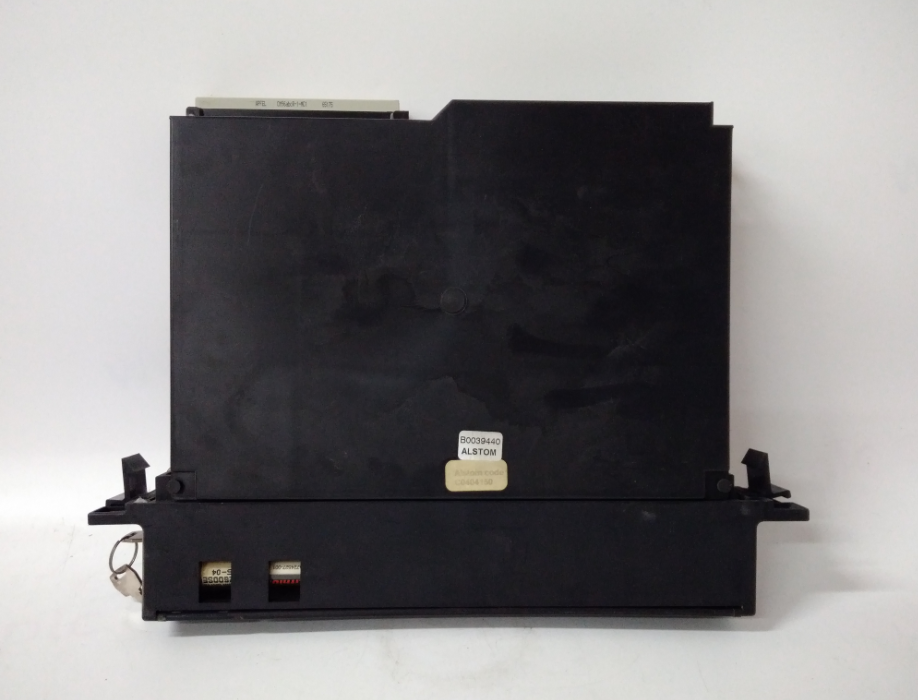

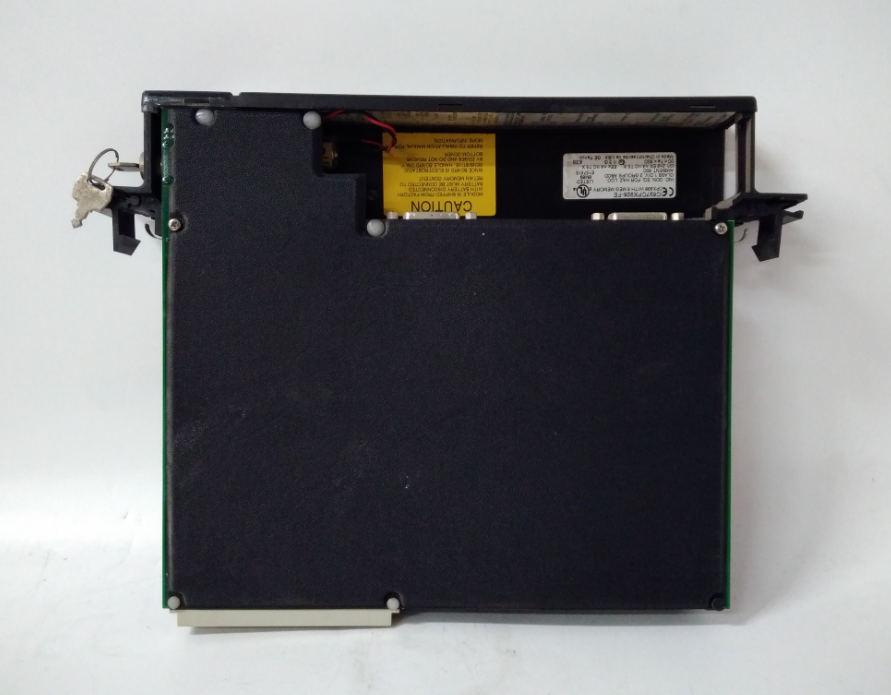

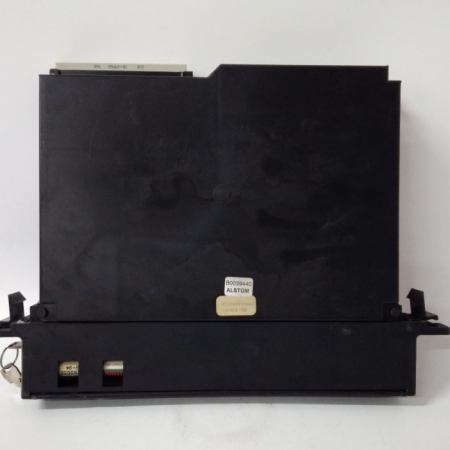

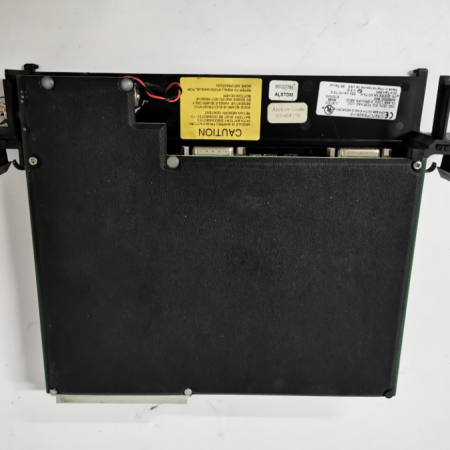

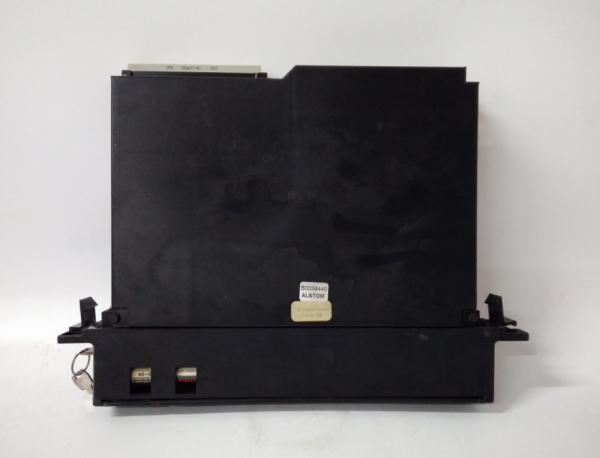

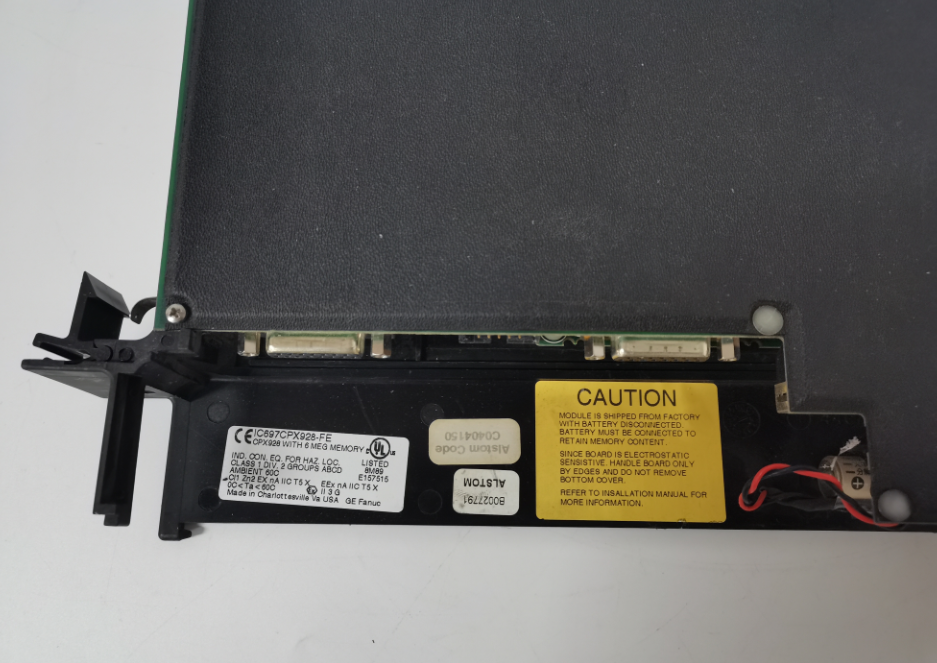

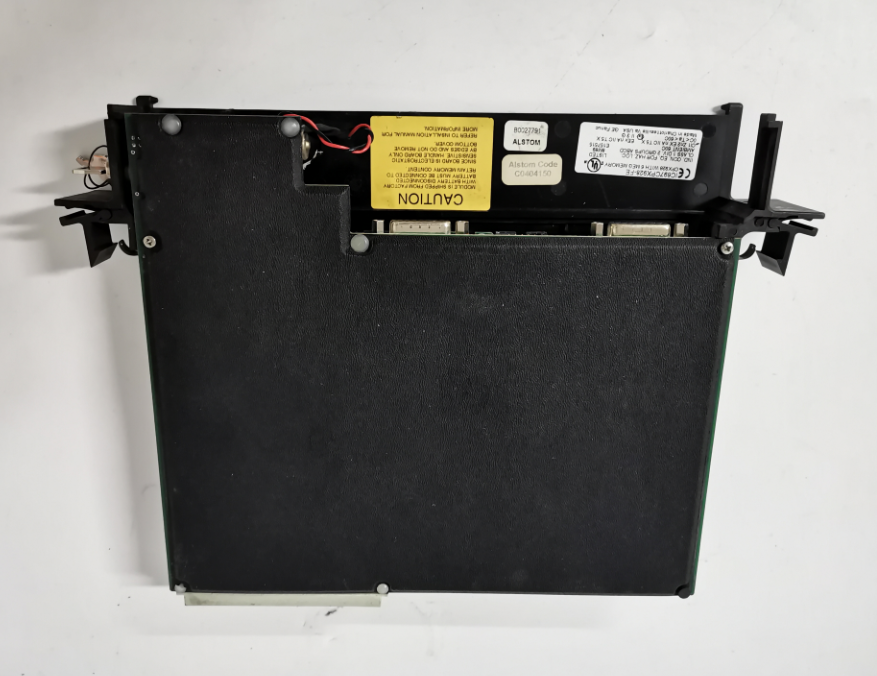

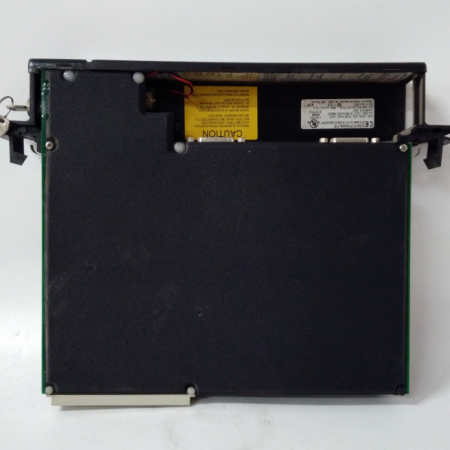

IC697CPX928-FE GE CPU Module

Product Description

The IC697CPX928-FE GE CPU module is designed to provide powerful processing capabilities for industrial control systems.It provides advanced features and reliable performance to ensure efficient operation in various applications.

feature

High processing power

Multiple communication ports

Compatible with GE Fanuc Series 90-70 PLC systems

GE Fanuc IC697CPX928-FE is a series 90-70 central processing unit(CPU)module.This CPU has 6MB of battery powered memory and 256KB of non-volatile user flash memory,with a processor speed of 96MHz and a typical scan rate of 0.4µs for each Boolean function.This processor has one(1)RS232 serial port,two(2)RS485 serial ports,and one(1)factory reset port.

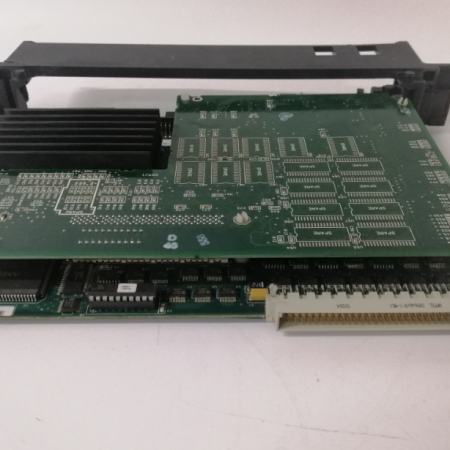

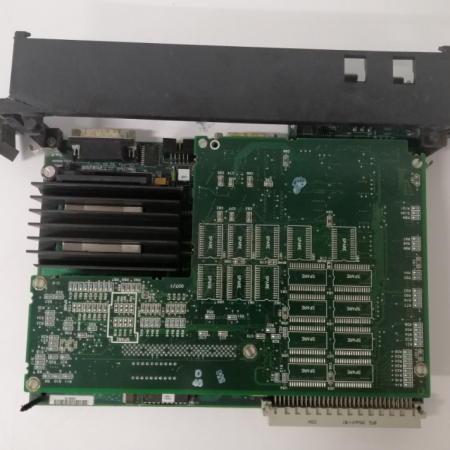

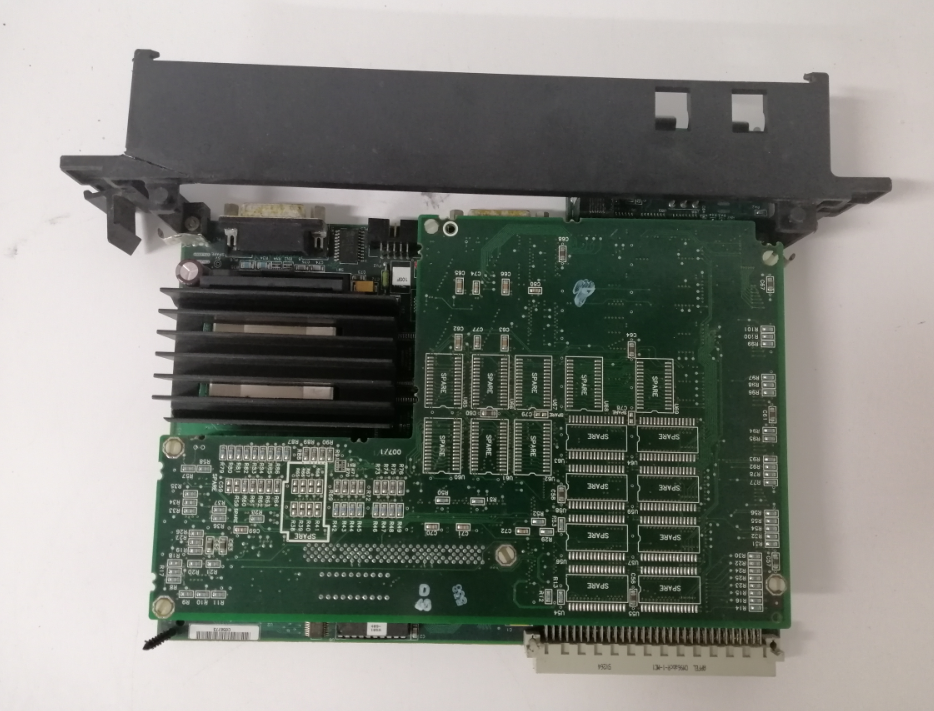

The GE Fanuc series 90-70 module of IC697CPX928-FE is a central processing unit(CPU)primarily used to execute user programs downloaded into CPU memory.The CPU module is a single slot chassis equipped with an 80486DX4 microprocessor,with a speed of 96 MHz and an execution time of 0.4µs for each Boolean function.This module is equipped with 6MB battery backup RAM onboard memory and 256KB non-volatile user flash memory,which also stores CPU firmware.

IC697CPX928-FE can handle up to 12K of any combination of inputs and outputs,as well as up to 8K of analog inputs and outputs.It supports 32-bit floating-point data.

IC697CPX928-FE is configured using programming software.It does not have jumper terminals or DIP switches for hardware parameter settings.Application software is programmed through Ethernet TCP/IP or SNP ports using MS-DOS software products or Windows based software products running on Windows 95 or Windows NT.

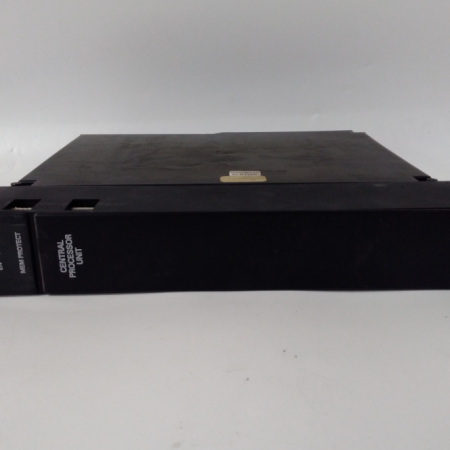

This controller is specifically equipped with seven(7)status LEDs,a lithium battery for retaining random access memory(RAM)content,and one(1)RS232 serial port,two(2)communication ports RS485 serial port,and one(1)factory reset port.

IC697CPX928-FE is compatible with multiple optional modules,enhancing the CPU and providing additional features.These option modules include Ethernet interface modules,programmable coprocessors,alphanumeric coprocessors,bus controllers,communication modules,I/O link interfaces,and the entire IC697 discrete and analog I/O module series.

The nominal current required for the IC697CPX928-FE module is 3.1 amperes.The required input voltage is 5 volts DC.This module adopts forced air cooling with a rated value of 70 CFM and can operate in ambient temperatures ranging from 32 to 140 degrees Fahrenheit.

If there is no forced air cooling,the operating temperature range of the IC697CPX928-FE CPU module will drop to between 32 and 122 degrees Fahrenheit.Depending on the type of available power supply,the IC697CPX928-FE module can be equipped with rack fan components powered by 120 V AC,240 V AC,or 24 V DC.The CPU module has 3 serial ports,with 2 ports supporting RS-485 communication and 1 port supporting RS-232 communication.These serial ports can be used to connect to programming devices for CPU configuration.In addition,optional Ethernet modules can also be installed in the PLC to enable configuration of the IC697CPX928-FE module through Ethernet.The IC697CPX928-FE module supports up to 8000 analog I/Os and any combination of 12000 I/Os.The IC697CPX928-FE module requires one slot in the GE Fanuc series 90-70 PLC rack for installation.There are a total of 7 LEDs on the front of the module for status updates.

application area

The IC697CPX928-FE GE CPU module allows for the execution of control algorithms and data processing tasks in programmable logic controller(PLC)systems.Suitable for various industrial sectors,including manufacturing,energy,and transportation.
