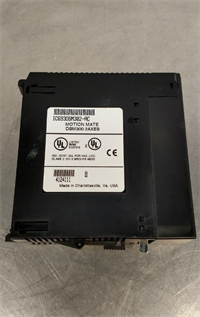

IC693DSM302-RE GE motion controller

Product Description

The IC693DSM302-RE GE motion controller is designed specifically to handle complex logic and communication functions within the system.

feature

Adopting dual axis module design

Capable of controlling digital servo systems

The IC693DSM302-RE GE motion controller is a high-performance device designed to work in conjunction with the 90-30 series PLC,suitable for handling complex logic solving and communication functions within the system.

The IC693DSM302-RE GE motion controller adopts a dual axis module design,which can control the digital servo system.Starting from firmware version 1.40,analog command input can be used for servo control 1.

The GE Fanuc motion controller(referred to as IC693DSM302 motion controller)is part of the GE series 90-30 and provides additional functionality for programmable logic controllers(PLCs).The device is equipped with 2 axes and a serial port for firmware updates.

The IC693DSM302 motion controller is a 90-30 series motion controller produced by GE Fanuc.This device is compatible with PLC components of the same series and provides high performance and advanced functionality in machine control and automation applications.The IC693DSM302 controller has two axes,which can solve communication and operation related issues between different components within the system.The IC693DSM302 motion controller is designed to control GE digital servo motors and includes an integrated digital signal processor,which is superior to similar controllers provided by other manufacturers.The IC693DSM302 controller also supports the control of SL series analog servos and third-party analog servos.Using this type of controller requires minimal programming and allows for the use of external programming devices.The additional programming device is connected through the accompanying RS-232 serial port,which is also used to perform firmware updates.

The GE series 90-30 IC693DSM302 motion controller has a short block processing time of less than 5 milliseconds,and the related programming unit has the following parameters:positioning-8388608 to 8388607 user units per second,positioning 1 to 8388607 user units per second.Speed,an acceleration of 1 to 134217727 user units per second.The IC693DSM302 controller is equipped with an instruction set that allows users to fully utilize all of its functions and provides non-volatile storage for up to 10 programs and 40 subroutines.The other functions of the IC693DSM302 controller include automatic data transmission,support for short motion programs,higher tracking accuracy,improved block start,user scaling,and servo adjustment.

application area

The IC693DSM302-RE GE motion controller is used in collaboration with the 90-30 series PLC to enhance its applicability in industrial automation and process control fields.
