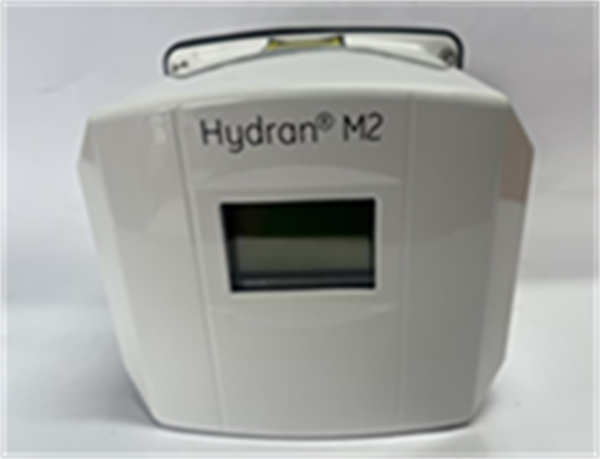

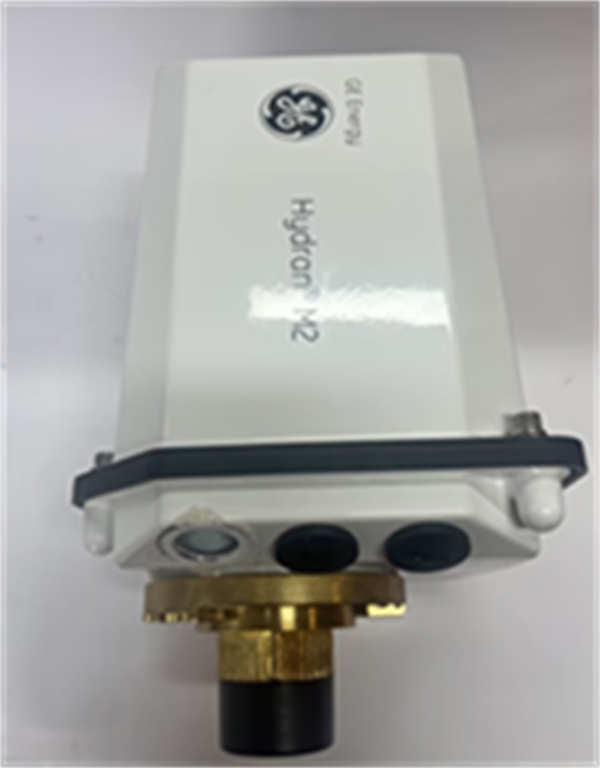

HYDRAN M2 GE Transformer Monitoring Equipment

Product Description

HYDRAN M2 GE Transformer Monitoring Equipment

Series:

GE Hydran M2 series

Function:

Monitor the operation status of transformers and detect potential faults early on

Usage:

Power system

Industrial and mining enterprises

Data center

Transportation

Features

Hydrogen sensor responds 100%to hydrogen gas(general fault gas)

The composite gas sensor responds 100%to hydrogen and is also sensitive to carbon dioxide(overheated paper insulator).

Up to 4 input or output cards can be selected

Extensive communication methods and protocols.

Standard RS485 output.TCP/IP copper or fiber optic optional

Product Description:

Hydra M2 is a compact,permanently installed online transformer monitoring device that can issue fault alerts to staff.It continuously monitors the composite values of various fault gases(ppm)or only hydrogen values(depending on the purchased sensor).In addition,it tracks the moisture in the oil(reading%RH and PPM).

The HYDRAN M2 GE transformer monitoring device is a transformer monitoring device based on online monitoring technology,which can monitor the operation status of transformers in real time and detect potential faults early.It has the following characteristics:

Real time monitoring:It can monitor the temperature rise,humidity,pressure,gas composition and other parameters of the transformer in real time,ensuring the safe operation of the transformer

Fault diagnosis:It can diagnose faults based on monitoring data,helping users detect potential faults early and avoid them from occurring

Preventive maintenance:Based on monitoring results,a preventive maintenance plan can be developed to help users extend the service life of transformers and reduce maintenance costs

The HYDRAN M2 GE transformer monitoring equipment adopts a modular design,which is easy to install.It has the following structure:

Monitoring module:including various sensors and acquisition circuits

Analysis module:includes data analysis and processing circuits

Display module:Display monitoring and analysis results

Product parameters:

Monitoring parameters:temperature rise,humidity,pressure,gas composition,etc

Monitoring accuracy:temperature rise±1℃,humidity±2%RH,pressure±0.1bar,gas composition±2%

Fault diagnosis function:can diagnose insulation faults,winding faults,overheating faults,etc.of transformers

Preventive maintenance function:can develop preventive maintenance plans based on monitoring results

Product specifications:

Dimensions:233mm x 102mm x 41mm

Weight:1.2kg

Application field

The HYDRAN M2 GE transformer monitoring equipment can be widely used in power systems,industrial and mining enterprises,data centers,transportation and other fields.

Here are some specific application examples:

In the power system,used for monitoring transformers in substations and distribution networks

Used in industrial and mining enterprises to monitor transformers in production equipment

In the data center,used to monitor transformers in the server room

In the field of transportation,used for monitoring transformers in rail and air transportation
