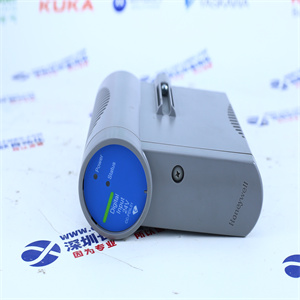

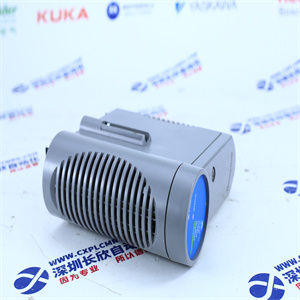

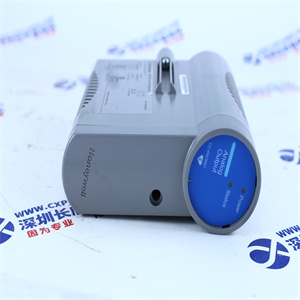

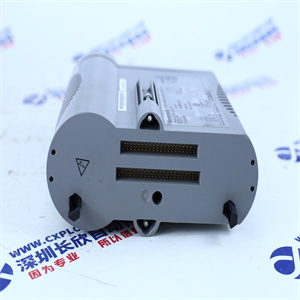

HONEYWELL CC-PDIL01

HONEYWELL CC-PDIL01

The Honeywell CC-PDIL01 is a digital input module that is part of the Honeywell ControlEdge Programmable Logic Controller (PLC) system. It is designed to provide high-speed, reliable digital input signals to the PLC for use in process control applications.

The CC-PDIL01 module has 16 digital input channels, each of which can be configured as either a sinking or sourcing input. The module supports a wide range of input types, including discrete signals, pulse signals, and frequency signals.

The module is designed for use in harsh industrial environments and is rated for operation in temperatures ranging from -40°C to 70°C. It also features built-in protection against electrical noise and transient voltage spikes.

Other key features of the Honeywell CC-PDIL01 module include:

• High-speed input scanning, with a maximum scan rate of 10 kHz
• Support for both single-ended and differential input signals
• LED indicators for each input channel, providing visual status feedback
• Hot-swappable design, allowing modules to be replaced without interrupting system operation
• Compatibility with Honeywell’s ControlEdge Builder software for easy configuration and programming.

Overall, the Honeywell CC-PDIL01 module is a reliable and versatile digital input solution for industrial process control applications.

Allen Bradley 80190-380-02-R 8019038002R Board new

ALLEN BRADLEY 80190-240-02-R BOARD

Allen Bradley 80190-258-02B 8100019952R NEW-NO BOX

NEW ALLEN BRADLEY 80190-320-03-R BOARD

ALLEN BRADLEY 80190-280-01-CR

Allen Bradley Rockwell AB 80190-320-03-R CIB Board NEW

NEW ALLEN BRADLEY 80190-200-01-R REGULATOR BOARD

Allen Bradley Fiber Optic Board 80190-100-01-R 80190100

Honeywell cc-pdil01 is a digital input module with the following parameter specifications:

1. input voltage: 24VDC

2. input type: digital input

3. number of input channels: 16

4. input signal: discrete signal

5. input current: max. 10mA

6. input resistance: max. 2.4k Ω

7. input protection: overvoltage, overcurrent and reverse protection

8. operating temperature: -40 ℃ to 70 ℃

9. storage temperature: -40 ℃ to 85 ℃

10. humidity range: 5% to 95% (non condensing)

11. dimension: 118mm x 88mm x 30mm

12. weight: About 200g

The Honeywell CC-PDIL01 is a digital input module that is part of the Honeywell ControlEdge Programmable Logic Controller (PLC) system. It provides eight isolated digital input channels that can be used to monitor the status of various devices or sensors in an industrial process. The module is designed to operate in harsh industrial environments and is capable of withstanding extreme temperatures, humidity, and vibration. It communicates with the PLC controller via a high-speed backplane bus and is configured using Honeywell’s Experion software. The CC-PDIL01 is commonly used in applications such as oil and gas, chemical processing, and power generation.
