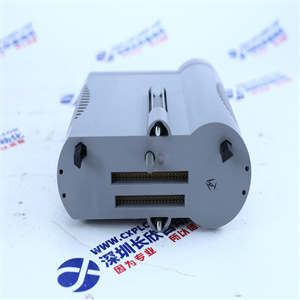

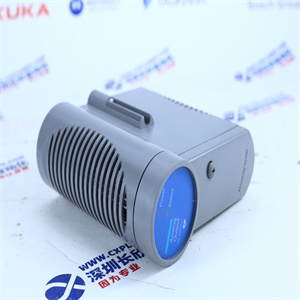

HONEYWELL CC-PAOX01

HONEYWELL CC-PAOX01

The Honeywell CC-PAOX01 is a ControlLogix Analog Output Module that provides four isolated analog output channels. It is designed to be used with the ControlLogix programmable automation controller (PAC) system and is compatible with a wide range of industrial applications. The module features a high-resolution 16-bit digital-to-analog converter (DAC) and supports a variety of output ranges, including 0-10VDC, 0-20mA, and -10VDC to +10VDC. The CC-PAOX01 module is easy to install and configure, and it supports both local and remote configuration and diagnostics. It is a reliable and cost-effective solution for controlling and monitoring analog devices in industrial automation systems.

Indramat Drive Part#TDM1.2-100-300-​W1 Used

Fanuc Servo Amplifier Type A06B-6058-H227

Mitsubishi Meldas Control Card MC446 Used

Allen Bradley SLC 500 Proc.Cat#1747-L552 Ser A Rev 1

Honeywell Yamatake CPU board 82408217-001 Used

BOSCH SERVO DRIVE 1070077958-200

Allen Bradley PLC 5 Proc.1785-L60B/E W/Enet/B Used

Allen Bradley PLC 5 Proc.1785-L60B/E W/Enet/B Used

The Honeywell CC-PAOX01 is a ControlLogix Analog Output Module that provides four isolated analog output channels. Each channel can be configured for voltage or current output and has a resolution of 16 bits. The module supports a range of output types, including linear, square root, and custom curve.

The following are the key specifications and parameters of the Honeywell CC-PAOX01 module:

• Power supply: 5V DC from backplane
• Output range: 0-10V DC or 4-20mA
• Output resolution: 16 bits
• Output accuracy: +/- 0.1% of full scale range
• Output update rate: 10ms per channel
• Isolation: 1500V AC between channels and backplane
• Operating temperature: 0 to 60°C
• Storage temperature: -40 to 85°C
• Dimensions: 4.92 x 3.54 x 1.77 inches (125 x 90 x 45 mm)
• Weight: 0.55 lbs (0.25 kg)

The Honeywell CC-PAOX01 module is designed for use in industrial automation applications and is compatible with the ControlLogix platform from Allen-Bradley. It provides reliable and accurate analog output signals for controlling various types of process equipment.
