Honeywell 05701-A-0302 is a single-channel control card designed for industrial automation and control systems.The following is a detailed introduction to the product:
1.Product Overview
Honeywell 05701-A-0302 single-channel control card has high-precision measurement,multi-signal type support,programmable functions and stable performance,and is easy to install and use.It is often used to monitor and control various processes and equipment,and plays an important role in industrial automation,instrumentation and data acquisition applications.

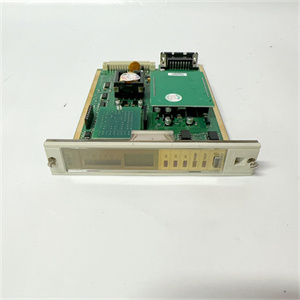

Honeywell 05701-a-0302
2.Technical Specifications
Brand:Honeywell
Model:05701-A-0302
Design:Single-channel design,suitable for application scenarios requiring a single input/output channel.
Measurement accuracy:High-precision measurement capability,capable of providing accurate analog input signals.
Signal type:Supports multiple signal types,such as analog signals(such as voltage or current)and digital signals(such as switch status or digital sensor signals).
Programmable function:Users can configure the parameters and functions of the control card through programming to meet specific application requirements.
Power requirements:Usually 18V to 32V DC power supply is required,and the power consumption(including catalytic sensor)is 3.75W(typical value).
Display:Equipped with a four-part LCD display,including analog display and digital display,for displaying various information.
Alarm function:It has the functions of catalytic A1,A2,and A3 gas alarms,and the alarm set point resolution can reach 1%fsd step.At the same time,it also has fault and suppression indications,as well as alarm reset and card selection buttons.
Honeywell 05701-a-0302
III.Product features
High-precision measurement:It can ensure precise control of the system.
Support for multiple signal types:It is convenient to connect with various sensors and actuators.
Programmability:It meets the user’s specific application requirements.
Stable performance:It adopts high-quality components and advanced production processes,has stable performance and reliable quality,and can operate stably for a long time in harsh industrial environments.
Easy to install and use:It adopts standard interfaces and sizes,which is convenient for installation in control cabinets or equipment.At the same time,it is also equipped with easy-to-use software and manuals for users to operate and maintain.
IV.Application Fields
Industrial Automation:used to integrate into industrial automation systems to improve production efficiency and automation.
Process Control:used to monitor and control industrial processes,such as chemical plants,pharmaceutical plants or other production processes.
Temperature Control:used in temperature control systems to ensure constant temperature in different environments.
Level Control:suitable for monitoring and controlling the level of liquid or solid materials,such as in tanks,reactors or containers.
Pressure Monitoring and Control:used to monitor and adjust the pressure in the system,such as in pipelines,containers or processing equipment.
Data Acquisition and Processing:as a data acquisition device,used to collect environmental data and perform corresponding processing.
V.Precautions
Installation and Debugging:During the installation and debugging process,ensure that the power supply,input signal and output device are correctly connected,and the wiring and debugging are carried out in accordance with relevant specifications.
Environmental Requirements:Ensure that the control card operates within the operating temperature range and avoid overheating,overhumidity or excessive dust.
Maintenance:Regularly check and maintain the control card to ensure that it is in good working condition.If a fault or abnormality is found,it should be handled and replaced in time.
In summary,Honeywell 05701-A-0302 is a single-channel control card with powerful functions and stable performance,which is suitable for various application scenarios of industrial automation and control systems.
