GE-VMIVME2510B

GE-VMIVME2510B,or GE VMIVME-2510B,is a 64-bit TTL digital input/output module.The following is a detailed introduction to the product:

I.Product Overview

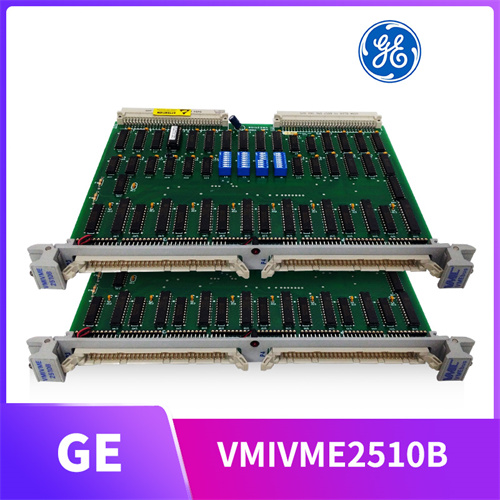

GE VMIVME-2510B is a member of the VMIC Megamodule family,designed with universal programming capabilities.It is compatible with the VMEbus specification,has a dual-high profile I/O connector,and supports 8-bit,16-bit,and 32-bit data transfer.The module can be used for independent board address decoding of control and data registers,as well as built-in test logic for fault detection and isolation.

GE-VMIVME2510B

II.Technical Specifications

Compatibility:Dual-high profile compatible with VMEbus specifications.

Connector Type:Dual 64-pin connector,DIN41612 compliant.

I/O Organization:Eight I/O ports,each eight bits wide,addressable to any address within the short monitor or short non-privileged I/O mapping.The eight ports are individually addressable on 8-bit or 16-bit boundaries.

Address DIP switch:Provides unlimited short data I/O address mapping selection.

Built-in test:supports real-time or offline mode to read back output data.Offline mode is enabled by writing to the control and status register(CSR)to set the TEST MODE bit.When test mode is enabled,all outputs are in a tri-state(TRI-STATE)state.Two test mode bits are provided to allow independent testing of each connector I/O(32 bits)when necessary.

GE-VMIVME2510B

Fault LED:The fault LED lights up at power-on and system reset,and can be turned off under program control after successful diagnostics.

I/O circuit:The transceiver supports high current(64mA)output.The SN74AS645 octal bus transceiver is used in the logic level TTL I/O option,and the SN74AS641 transceiver is used in the open collector option.

Power supply requirements:+5V,3.786A(maximum).

III.Features

The direction of each 8-bit port can be programmed individually:flexible port configuration options are provided.

64mA sink current capability(15mA source):supports high current output and is suitable for various application scenarios.

Independent board address decoding for control and data registers:simplifies system configuration and memory management.

Built-in test logic for fault detection and isolation:improves system reliability and maintainability.

High-reliability DIN-type I/O connector:ensures stable connection between the module and the system.

Optional open collector output:provides additional output options to meet different application requirements.

IV.Application scenarios

GE VMIVME-2510B is suitable for industrial automation,embedded systems,programmable logic controllers(PLCs)and other fields,especially in scenarios requiring high-performance digital input/output functions.
