IS220PVIBH1AL is a vibration monitoring module designed by GE(General Electric)for its Mark VI series control system.The following is a detailed introduction to the module:
1.Basic information
Brand:General Electric(GE)
Model:IS220PVIBH1AL
Type:Vibration monitoring module

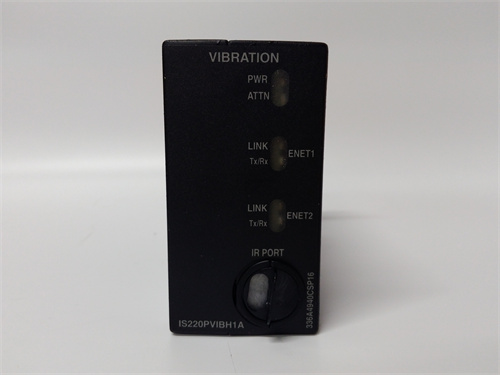

GE IS220PVIBH1AL
2.Functions and applications
The IS220PVIBH1AL module is mainly used to collect and analyze vibration signals of rotating machinery,and provide vibration trend monitoring,alarm and diagnosis functions to ensure the reliable operation of the equipment.Specific functions include:
Vibration monitoring:Real-time collection and analysis of vibration signals,providing vibration trend monitoring.
Alarm function:When the vibration exceeds the set threshold,an alarm signal is issued to remind the operator to take timely measures.
Diagnostic function:Help diagnose equipment failures,prevent failures in advance,and reduce equipment downtime and maintenance costs.
This module is widely used in vibration monitoring of rotating machinery such as gas turbines,steam turbines,pumps,compressors,and vibration monitoring in industrial fields such as power generation equipment and petrochemical equipment.
3.Technical features
High precision:High measurement accuracy,which can accurately reflect the vibration status of the equipment.
Multi-function:Provides a variety of vibration analysis functions,such as trend monitoring,alarm and diagnosis.
Modular design:Easy installation and maintenance,improves the scalability and flexibility of the system.
Industrial-grade design:Suitable for harsh industrial environments,with excellent stability and reliability.
IV.Main components and interfaces
The main components of the IS220PVIBH1AL module include the main processor board,daughter board and acquisition board.It provides multiple I/O Ethernet network interfaces and a vibration terminal board interface for connection and data exchange with sensors and other devices.
GE IS220PVIBH1AL
V.Technical specifications
Input signal:Can connect to various types of vibration sensor signals.
Output signal:Can output analog or digital signals.
Frequency range:10Hz~10kHz(or different according to the specific application scenario).
Accuracy:High accuracy(the specific value may vary depending on the product batch and calibration).
Operating temperature:-30℃65℃(or-20℃70℃,please refer to the product manual for details).
Relative humidity:5%~95%(non-condensing).
Protection level:IP20(or other levels,please refer to the product manual for details).
Dimensions:Standard cabinet installation dimensions(specific dimensions may vary depending on product version and manufacturer).
