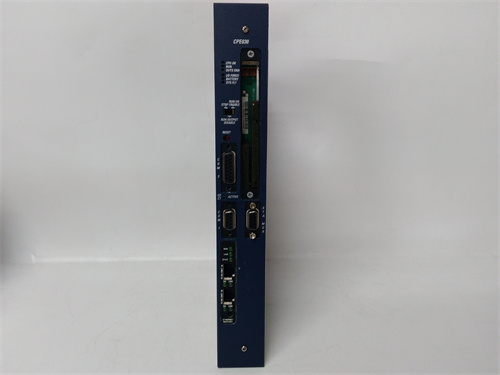

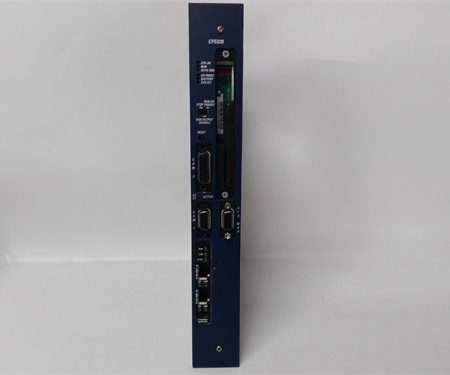

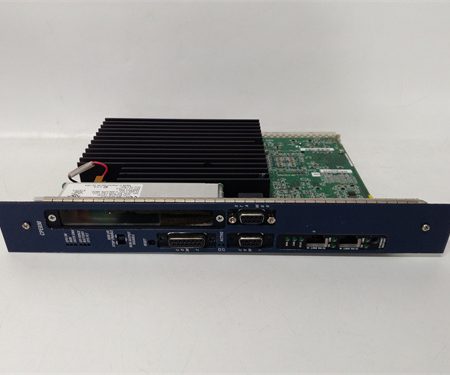

GE IC698CPE030

IC698CPE030 is an advanced central processing unit(CPU)in the PACSystem RX7i series of programmable automation controllers(PACs).The following is a detailed introduction to the processor:

I.Basic Information

Product Model:IC698CPE030

Manufacturer:Originally manufactured by GE Intelligent Platforms(GE IP),now acquired by Emerson Automation.

Application:PACSystem RX7i series

GE IC698CPE030

II.Technical Specifications

Processor:Computer-grade microprocessor,specifically a 600MHz Pentium-M microprocessor.

Memory:64MB user memory and 64MB user flash memory,both battery-powered,for application and data storage.

Boolean Execution Speed:Boolean execution speed of 0.069 milliseconds per 1000 Boolean contacts/coils.

I/O Capacity:Can accommodate up to 32K bits of discrete I/O and 32K words of analog I/O.

Number of Program Blocks:Up to 512 program blocks can be downloaded to the CPU,each with up to 128KB of memory.

3.Communication interface

Ethernet port:Two Ethernet communication ports,support automatic detection of network transmission speed,and can be configured for half-duplex and full-duplex operation modes.Provide Ethernet global data(EGD)data exchange,TCP/IP high-speed data transmission,and support Modbus/TCP server,Modbus/TCP client and SRTP channel protocols.

RS232 port:One RS232 serial port.

RS485 port:One isolated RS485 serial port.

Station manager port:One dedicated RS232 Ethernet station manager port.

GE IC698CPE030

4.Functional features

Advanced programming:Advanced user parameters can be programmed using ladder diagrams,structured text,function block diagrams,and C programming languages.

Compatibility:Supports 90-70 series discrete and analog I/O modules,communication modules,90-70 series supported VME modules,and various programmers and HMI modules.

Remote monitoring:Built-in network server and file transfer protocol(FTP)functions allow users to remotely monitor and configure the processor through the Ethernet port.

5.Electrical Characteristics

Rated voltage:+5,+12 or-12V DC.

Backplane rated current:3.4A at 5V DC.
