GE IC698CPE020 is a CPU module of PACSystems RX7i series manufactured by GE Automation.The following is a detailed introduction to the product:
I.Product Overview
As the core processor of PACSystems RX7i series,GE IC698CPE020 has powerful real-time control and communication functions.It can control the machine in real time and communicate with other rack modules through the standard VME backplane,suitable for various industrial automation and process control applications.

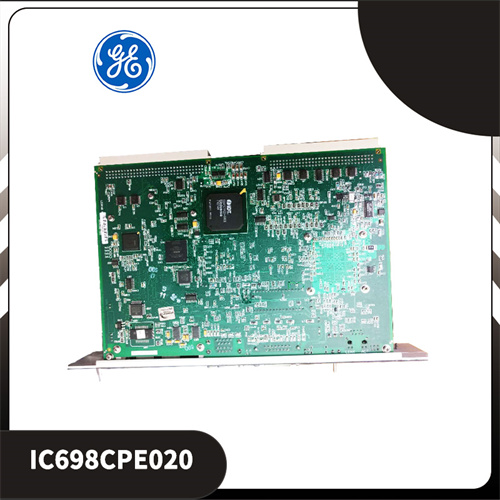

GE IC698CPE020
II.Main Features
High-performance processor:
Equipped with 700MHz Pentium III floating-point microprocessor,the standard execution speed is 0.14 milliseconds per 1000 Boolean contacts,capable of handling complex control logic and data processing tasks.
Rich memory resources:
Provides 10 megabytes of volatile memory(RAM)and 10 megabytes of flash memory(NVRAM)for storing user data,programming configuration,symbolic variables,and register-related information.
A CMOS battery is required to support the volatile memory,while the flash memory is non-volatile,ensuring the persistence of data.
Multiple communication interfaces:
It has three serial ports and two Ethernet ports,supporting serial communication protocols such as RS-232,RS-485,and TCP/IP Ethernet communication protocols.
The third serial port is the workstation manager port,which is convenient for remote monitoring and management.
Remote monitoring and control:
Through the connected network and remote monitoring software,operators can remotely access and manage the status and operation of the GE IC698CPE020,improving the maintenance and management efficiency of the system.
Scalability and flexibility:
Supports a variety of expansion and configuration options,which can be customized according to actual needs to adapt to industrial automation systems of different scales and complexities.
High reliability and stability:
As the core processor module of the industrial automation system,the GE IC698CPE020 has high reliability and stability,and adopts advanced fault detection and diagnosis technology to detect and solve problems in time to ensure the normal operation of the system.
III.Featured functions
Support 512 program blocks for complex programming and logic control.
Support ladder diagram and C programming,providing flexible programming methods.
Provide symbol variable support for variable management and programming.
Support modification of test mode for system debugging and testing.
It can monitor system data through the network to achieve real-time data monitoring and analysis.
IV.Application Scenarios
GE IC698CPE020 is widely used in various industrial automation and process control fields,such as manufacturing,energy and power,chemical industry and other industries.It can provide powerful control and processing capabilities for PLC systems,support the control and monitoring of various equipment and processes,and improve production efficiency and quality.

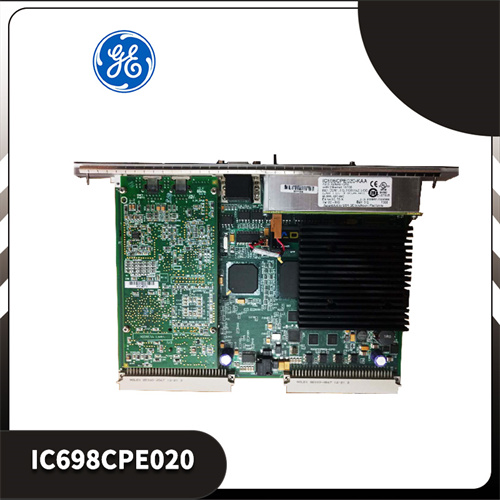

GE IC698CPE020
V.Installation and Configuration
When installing and configuring GE IC698CPE020,you need to follow the following steps:
Record the MAC address of the device.
Turn off the rack power.
Insert GE IC698CPE020 in rack slot 1.
Connect the device to the Ethernet LAN.
Restore rack power.
Connect the CMOS battery.
Connect the GE IC698CPE020 to the computer using the appropriate serial port and run the update software to update the firmware(if necessary).
In summary,GE IC698CPE020 is a powerful and high-performance industrial automation core processor module.It has high-performance processors,rich memory resources,multiple communication interfaces,remote monitoring and control functions,high reliability and stability,and can be widely used in various industrial automation and process control fields.
