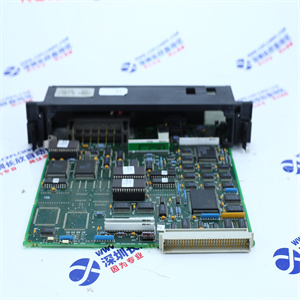

GE IC697BEM731

GE IC697BEM731 Product Details, Specifications, Parameters, and Applications

The GE IC697BEM731 is a highly advanced and feature-rich controller module, belonging to the GE Fanuc series of programmable logic controllers (PLCs). This module offers a range of exceptional specifications and parameters, making it suitable for various industrial automation and control applications.

Product Overview:

Brand: GE/General Electric
Model: IC697BEM731
Type: Controller Module

Product Specifications:

Voltage Range: The IC697BEM731 operates on a wide voltage range, typically between 24VDC and 24V AC. It also accepts input voltages ranging from 85-264V AC or 110-370V DC.
Dimensions and Weight: The module measures 166mm x 112mm x 36mm and weighs approximately 1.3 kilograms.
Output Power: It has an output power rating of 450 watts.
Operating Temperature: The IC697BEM731 can operate within a temperature range of -40°C to +70°C.

Product Parameters:

Connectivity: The IC697BEM731 is designed for connectivity, with one channel for interfacing with devices on the same bus. It also features a handheld monitor (HHM) port, allowing for configuration downloads using MS DOS or Windows programming software.
Bus Controller Functionality: This module serves as a bus controller, connecting up to 30 devices and facilitating data transmission between configured devices on the same bus. It supports token passing for data communication.
Configurable Addresses: Although the module is delivered without a defined bus address, it can be configured with a default address of 153.6 Kbaud standard and bus address 31. This default address can be modified by downloading a valid configuration to the CPU.
Communication Distance: The maximum allowed communication distance depends on the configured baud rate. For example, at 153.6 Kbaud (standard), the distance is 2000 feet; at 153.6 Kbaud (extended), it is 3500 feet; at 76.8 Kbaud, it is 4500 feet; and at 38.4 Kbaud, it is 7500 feet.
Physical Communication Cable: The physical communication cable used for establishing the network is the Belden 9182 type, with specific part numbers and lengths depending on the application.

Applications:

The GE IC697BEM731 finds applications in various industrial sectors where reliable and efficient control is crucial. It is commonly used in数控机械、冶金、石油天然气、造纸印刷、纺织印染、机械、电子制造、汽车制造、烟草、塑胶机械、发电厂、水利处理/环保、市政工程、钢厂、水泥厂、机器人、轨道交通、自动化设备, and other industrial settings where PLC-based control systems are essential.

Please note that specifications and applications may vary based on specific industrial requirements and needs. It is recommended to consult with a professional or technical expert for detailed information and guidance on its usage and applications.
