GE-IC698CPE030 is an industrial control DCS system module based on GE IC698CPE030CPU,which is the central processing unit(CPU)in the programmable automation controller(PAC)PACSystem RX7i.The following is a detailed introduction to GE-IC698CPE030:
1.Basic information
Brand and manufacturer:originally manufactured by GE Intelligent Platforms(GE IP),later acquired by Emerson Automation and now its product.
Part number:IC698CPE030
Product description:Central processing unit for GE Rx7i system.

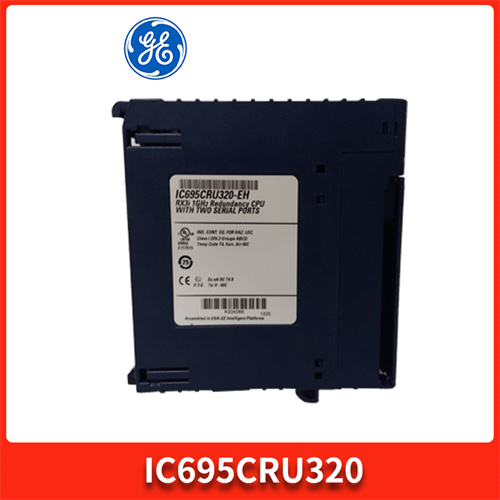

GE-IC695CRU320
2.Core performance
Processor:600MHz Pentium-M microprocessor.
Memory:64MB user memory and 64MB user flash memory,battery backup user memory and non-volatile flash user memory 64MB each.
Boolean execution speed:Boolean execution speed is 0.069 milliseconds per 1000 Boolean contacts/coils.
I/O capacity:can accommodate up to 32K bits of discrete I/O and 32K words of analog I/O.
Program blocks:Up to 512 program blocks can be downloaded to the CPU,each of which can have up to 128KB of memory.
3.Communication interface
Ethernet port:Two Ethernet communication ports that can automatically detect network transmission speed and can be configured for half-duplex and full-duplex operation modes.Supports Ethernet Global Data(EGD)data exchange,TCP/IP high-speed data transmission,as well as Modbus/TCP server,Modbus/TCP client and SRTP channel protocols.
Serial port:One RS-232 serial port,one RS-485 serial port and one RS-232 Ethernet station manager serial port.Supports serial protocols such as Modbus RTU slave,SNP,serial I/O,etc.
4.Software and programming
Programming software:Configured with Proficy Machine Edition(ME)Logic Developer configuration software 4.5 or higher,providing an advanced application programming environment.
Programming language:Supports multiple programming languagessuch as ladder diagram,C language,structured text and function block diagram.
GE-IC695CRU320
5.Application and Compatibility
Application:Suitable for industrial automation,embedded systems(such as robot control,intelligent equipment,etc.),programmable logic controllers(PLC)and other fields.
Compatibility:Supports 90-70 series discrete and analog I/O modules,communication modules and VME modules.Also compatible with various programmers and human-machine interface(HMI)modules.
6.Electrical specifications
Rated voltage:+5,+12 or-12V DC.
Backplane rated current:3.4A at 5V DC.
In summary,GE-IC698CPE030 is a high-performance,high-reliability central processor suitable for a variety of industrial automation and control systems.For more information,it is recommended to contact Emerson Automation directly or visit its official website.
