GE IC693PWR322F

GE IC693PWR322F is a standard power supply module produced by General Electric(GE).The following is a detailed introduction to the product:

I.Product Overview

GE IC693PWR322F is a standard power supply designed for industrial automation systems.It provides a stable power supply to ensure the normal operation of the system.The power module has multiple output channels and can provide power with different voltage levels and current capacities to meet the needs of various devices and modules.

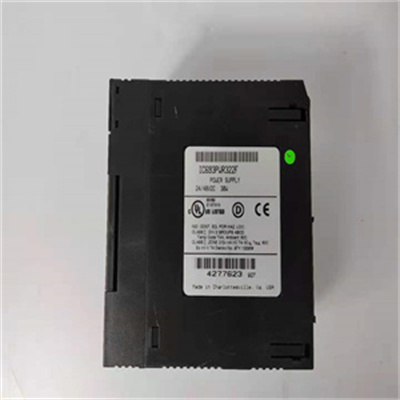

GE IC693PWR322F

II.Main Features

Multiple outputs:

Provides multiple power output channels such as+5VDC,+24VDC isolation and+24VDC relay output.

Each output channel has a specific function,such as+5VDC for backplane power supply and+24VDC relay output for powering the relay module.

Status indicator:

Equipped with four status indicators such as PWR LED,OK LED,RUN LED and BATT LED to display the working status and battery status of the power supply.

Communication interface:

It has an RS485 communication port,allowing the connection of programming workstations,handheld programmers and other devices compatible with the RS485 communication standard.

A communication method with the PLC serial port is also provided,which can be used to connect with a computer or handheld programmer device.

Overvoltage and overcurrent protection:

Built-in overvoltage and overcurrent protection mechanisms to ensure that the power supply can operate safely under abnormal conditions.

The overvoltage protection limit is 6.4 to 7V(5VDC output),and the overcurrent protection maximum is 4A(5VDC output).

Redundancy and hot backup:

Some applications require high availability,so this power module may have redundant power input and output to prevent downtime caused by single point failure.

Some modules can be configured as hot backup to achieve seamless transition and failover to ensure system continuity.

Industrial-grade design:

Designed to operate reliably in harsh industrial environments and meet the needs of various industrial applications.

GE IC693PWR322F

III.Technical parameters

Input power voltage:24 to 48VDC.

Output power:30 watts.

Hold time:14ms.

Inrush current:With a peak surge current of 100 amperes at a maximum of 4ms,it is designed to withstand a surge current of a maximum current value of 4A for 100ms.

Input power requirement:50 watts maximum during full load use.

Dimensions and weight:Specific dimensions and weight may vary depending on product batches.It is recommended to refer to official documents or contact the manufacturer for accurate information.

IV.Application environment

The GE IC693PWR322F power module is commonly used in GE’s industrial automation systems,such as the 90-30 series PLC.It provides a stable power supply for other systems and modules to ensure the normal operation of the system.At the same time,this power module is also suitable for industrial environments that require high reliability and stability.
