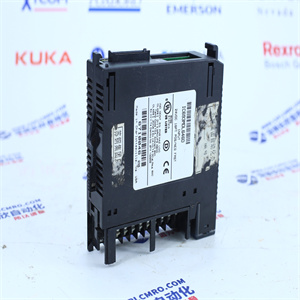

GE IC693MDL646

GE IC693MDL646 Product Details, Specifications, Parameters, and Application Fields

Product Details:

The GE IC693MDL646 is a discrete input module from General Electric’s Fanuc/Emerson Automation series. Formerly produced by GE Fanuc, it now belongs to Emerson Automation. This module is specifically designed for use in programmable logic controllers (PLCs) of the 90-30 series.

Product Specifications:

Brand: General Electric (GE).
Series: 90-30.
Input Configuration: Features sixteen (16) 24VDC input channels with support for positive/negative logic wiring configurations. It accepts input voltage ranging from 0-30 VDC and an input current of 7 mA.
背板电流消耗: Consumes 80 mA at 5VDC and 125 mA at 24VDC.
Operating Temperature: Rated for operation in a wide temperature range.
Dimensions and Weight: Specified by the manufacturer.

Product Parameters:

Input Channels: Sixteen (16) input channels.
Power Input: Comes with a universal power input terminal.
Response Time: Typical on and off response time is 1 millisecond.
Field Devices: Designed to accommodate various binary or on/off field devices such as buttons, switches, proximity switches, and auxiliary contacts.
Input Voltage Range: Accepts 0-30 VDC input voltage with a nominal value of 24 VDC.
Input Characteristics: Includes on-state voltage ranging from 11.5 VDC to 30 VDC, off-state voltage from 0 VDC to 5 VDC, on-state current of 3.2 mA (minimum), and off-state current of 1.1 mA (maximum).

Application Fields:

The GE IC693MDL646 discrete input module finds applications in various industrial automation scenarios, particularly in PLC-based systems. It is suitable for use in controlling and monitoring processes where binary or on/off signals are involved. Common applications include, but are not limited to, machine control, packaging systems, conveyor belts, material handling equipment, and other industrial machinery. Its compatibility with the 90-30 series PLCs and Emerson Automation makes it a popular choice for industrial automation professionals.

Please note that when considering the GE IC693MDL646 for specific applications, it is recommended to consult with the manufacturer or a qualified automation integrator for detailed information and assistance.
