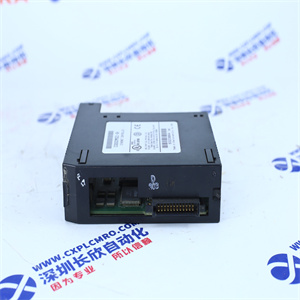

GE IC693MDL645

GE IC693MDL645 Product Details, Specifications, Parameters, and Application Fields

Product Details:

The GE IC693MDL645 is a positive/negative logic input module from General Electric’s range of industrial automation products. This module is designed to connect and interface with input devices, allowing for the smooth transmission of signals within industrial control systems.

Product Specifications:

Brand: General Electric (GE).
Model: IC693MDL645.
Series: 90-30.
Input Type: Positive/negative logic.
Input Configuration: Comes with one input group and a common terminal.
Voltage Range: Accepts external voltage signals ranging from 0-30 VDC, with a nominal voltage of 24VDC. The rated input current is 7 mA at the rated voltage.
Isolation Ratings: Rated for 1500 VDC isolation between the field side and logic side.
Operating Voltage: 24VDC.
Output Frequency: 620kHz.

Product Parameters:

**Conductance State:**Rated voltage of 11.5-30 VDC and a shutdown state voltage of 0-5 VDC.
Current Ratings: Minimum conductance state current is 3.2 mA, while the shutdown state current is 1.1 mA.
Response Time: Both on and off states have a response time of 7 ms.

Application Fields:

The GE IC693MDL645 finds widespread applications in various industrial automation scenarios. Its ability to interface with input devices and transmit signals makes it a crucial component in PLC systems. It is commonly used in complex motion control, mining, water treatment, elevator control, high-speed packaging, injection molding, material handling, food processing, and continuous emission monitoring. It can also adapt to a wide range of digital interfaces, analog modules, and communication protocols, making it highly versatile and suitable for numerous industrial applications.

Please note that when considering the GE IC693MDL645 for specific applications, it is recommended to consult with the manufacturer or a qualified automation integrator for detailed information and assistance.
